Front and Rear Brake Overhaul

4 November 2020 · Maintenance
Ready to overhaul
Old Front Components Removed
New Back Plates Fitted to Front Hubs
New OEM Front Discs Fitted
New OEM Jaguar Front Pads Fitted

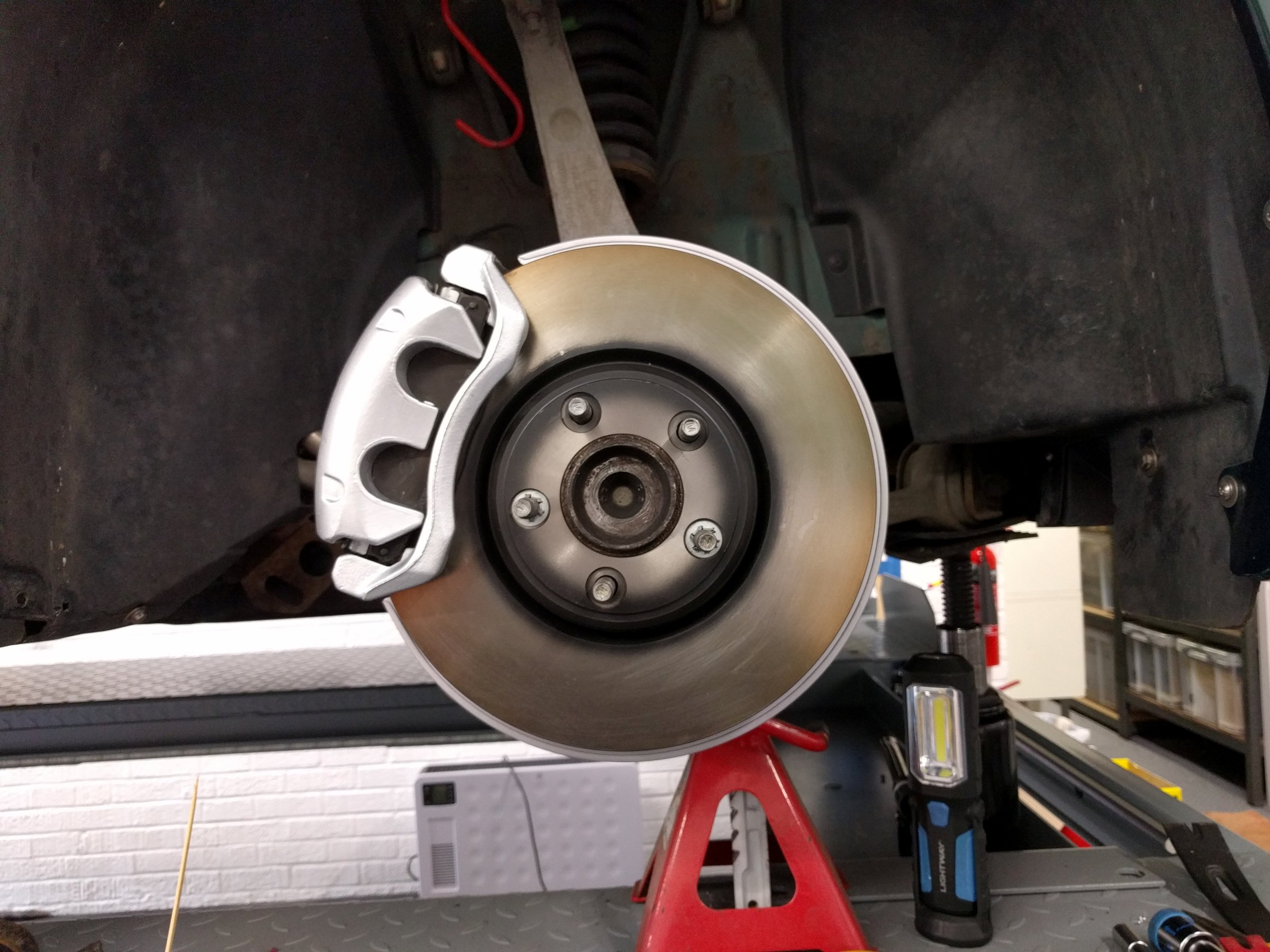

Front Calipers painted and Fitted

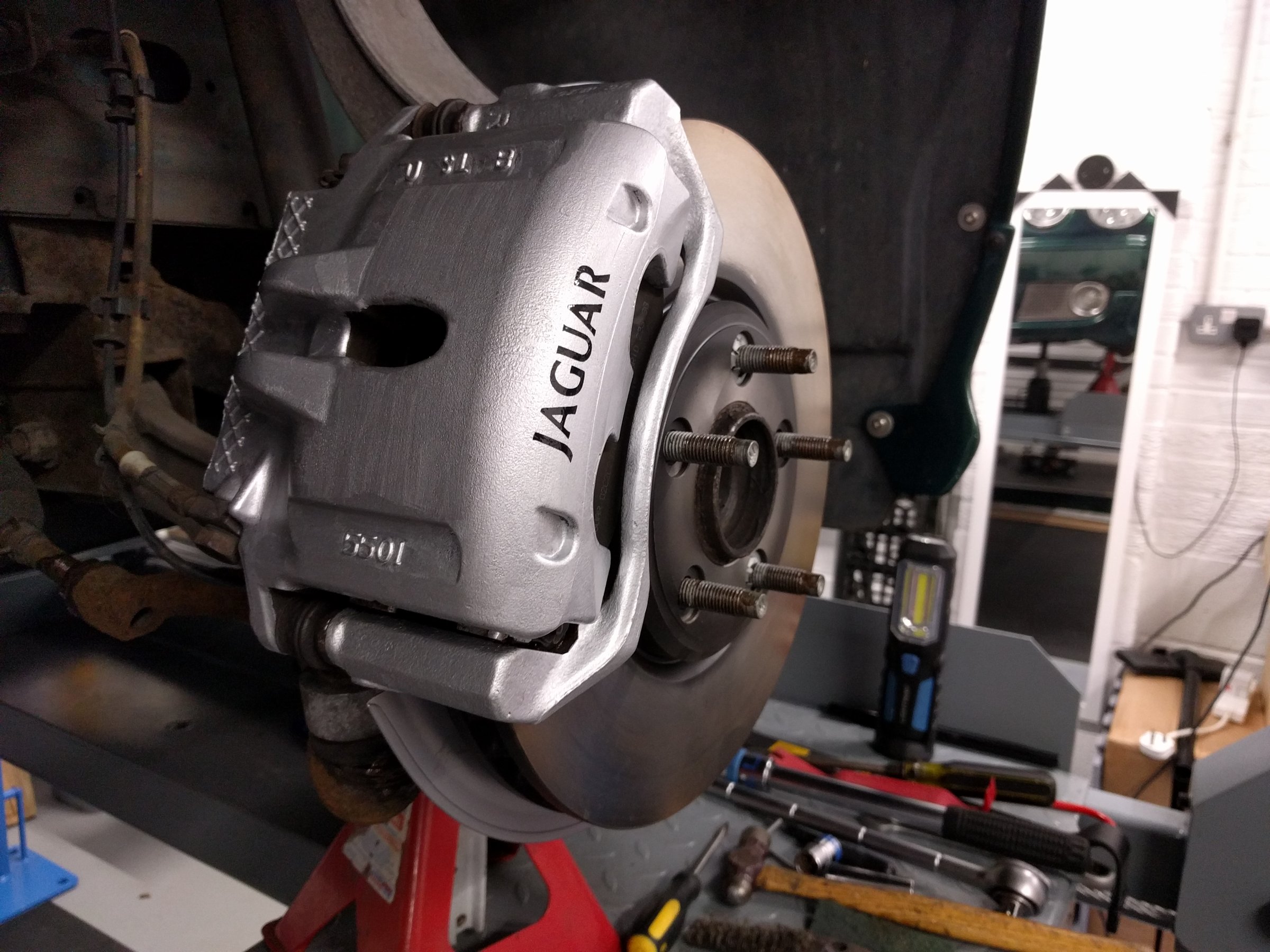

Logo Fitted and Sealed

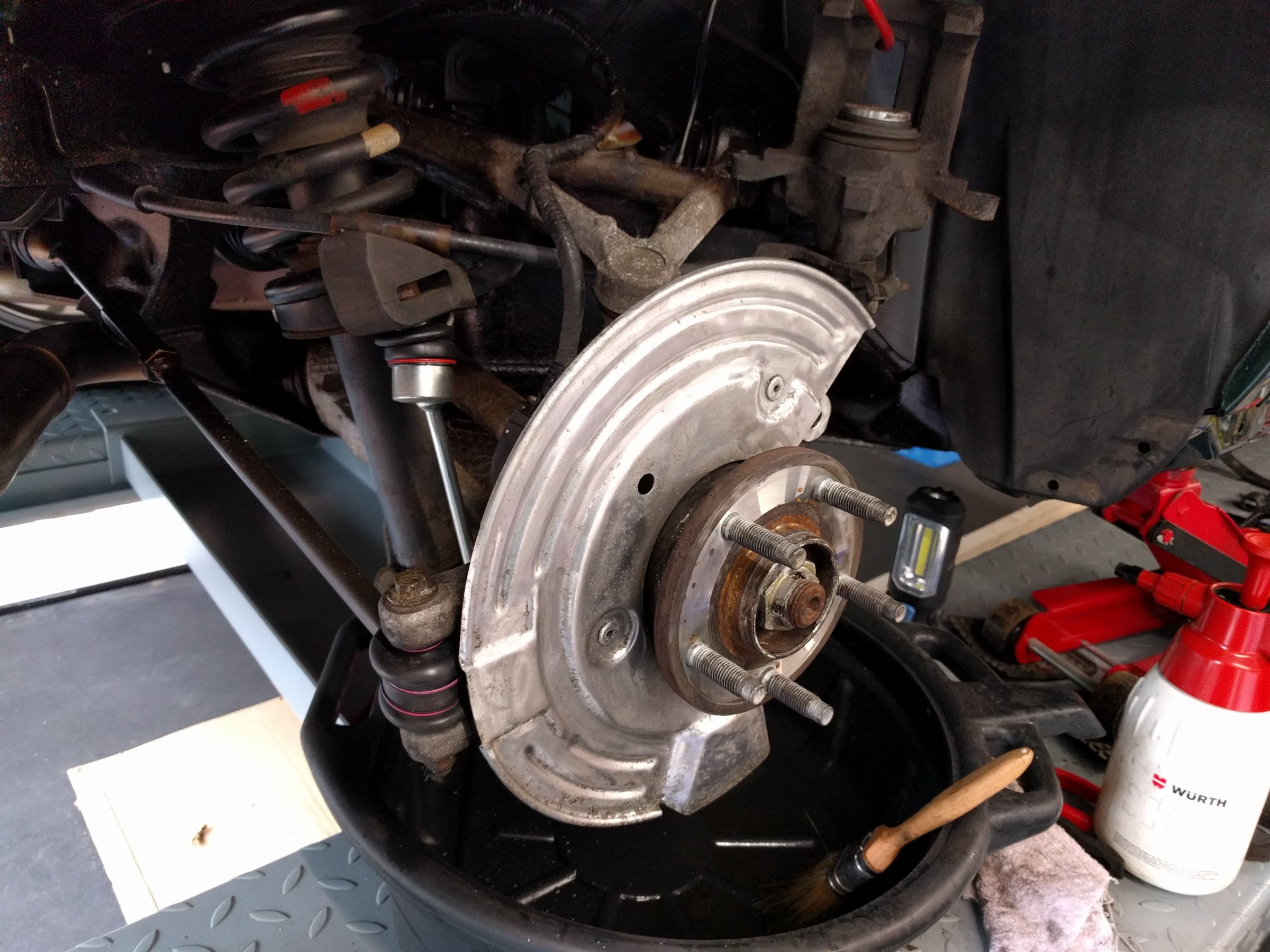

Rear Back Plates Cleaned

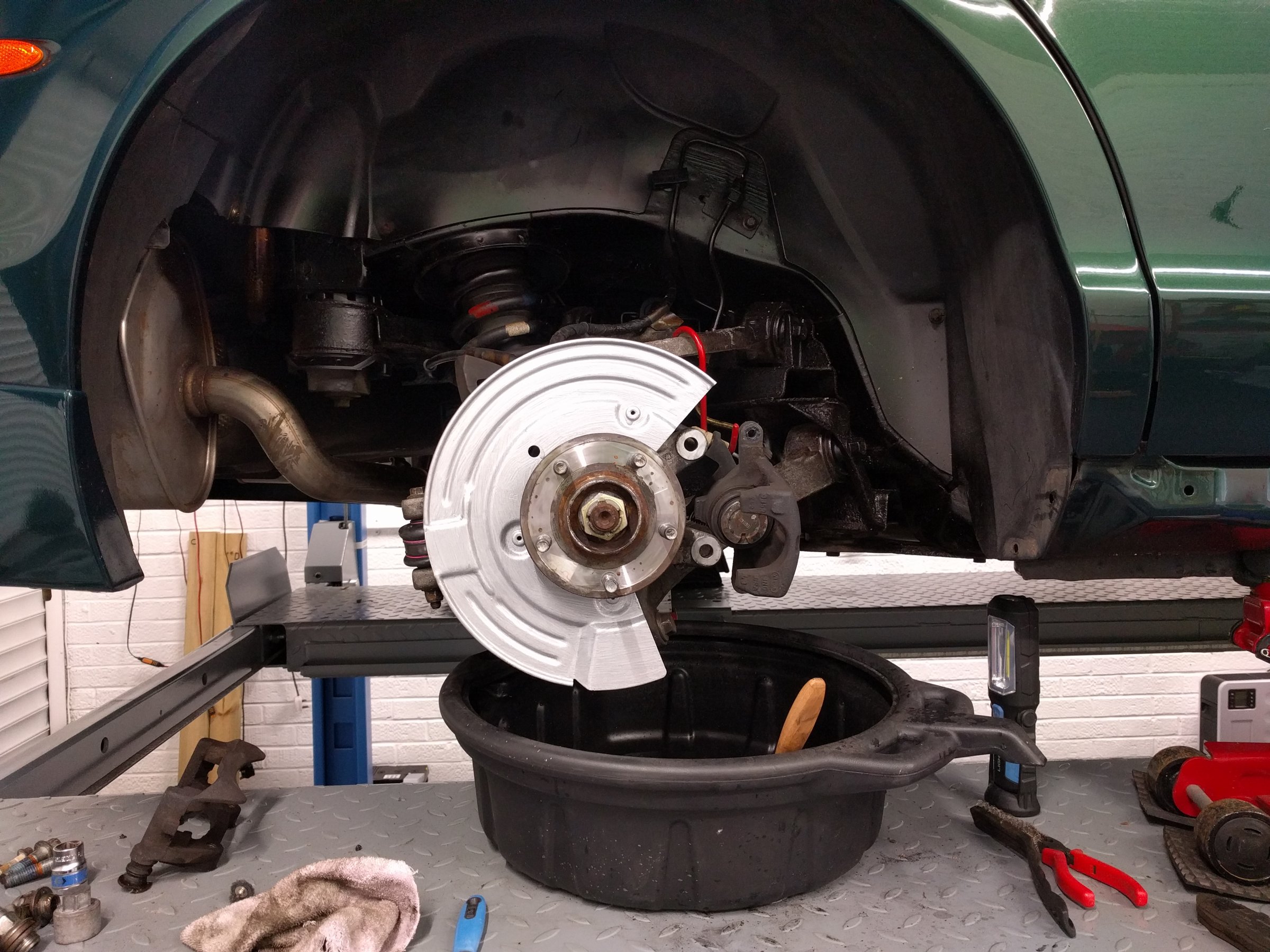

Rear Back Plates Painted

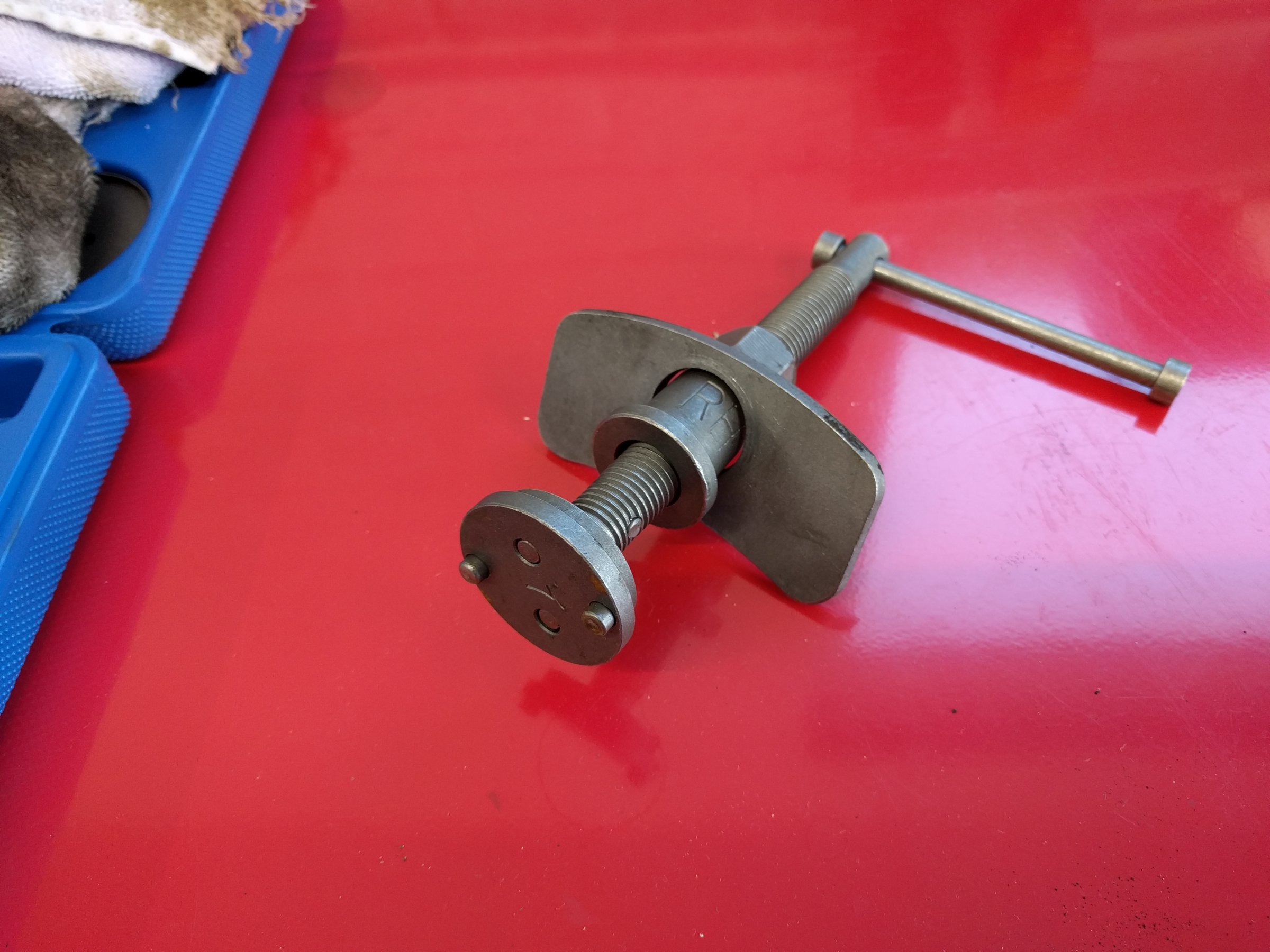

Piston Wind Back Tool

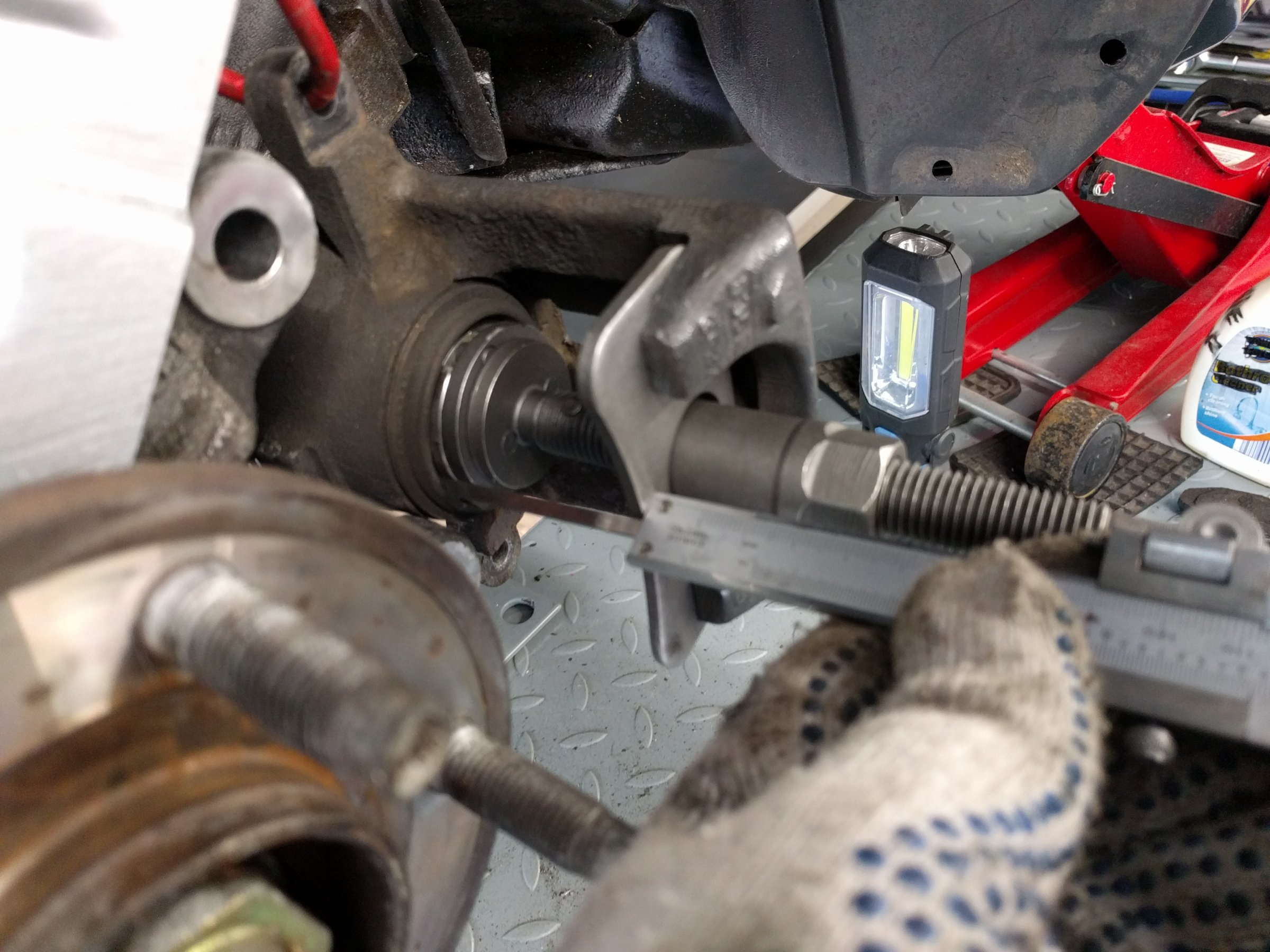

Rear Calipers Wound Back Ready to accept new disc and pads

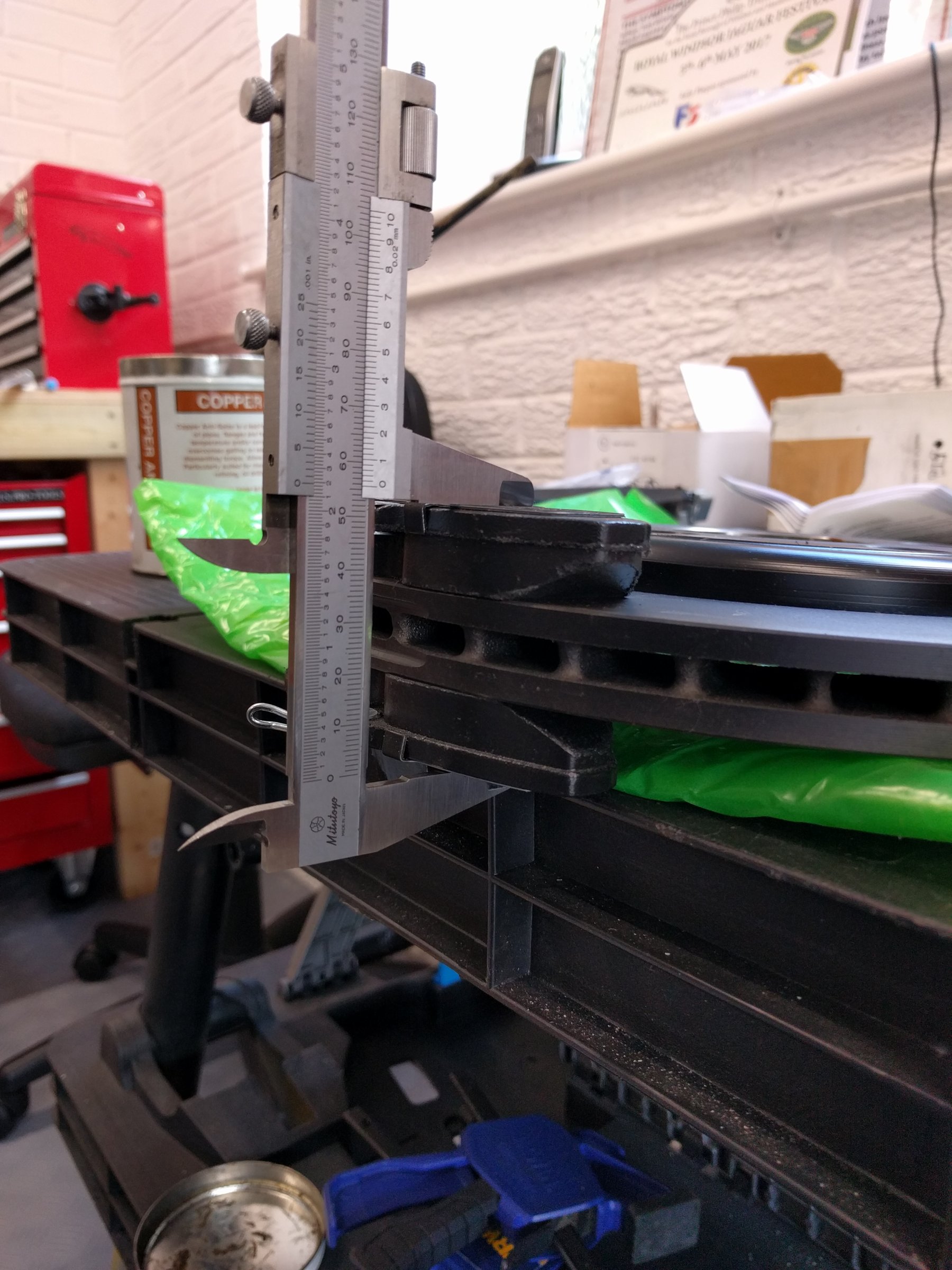

Assessing amount of wind back required

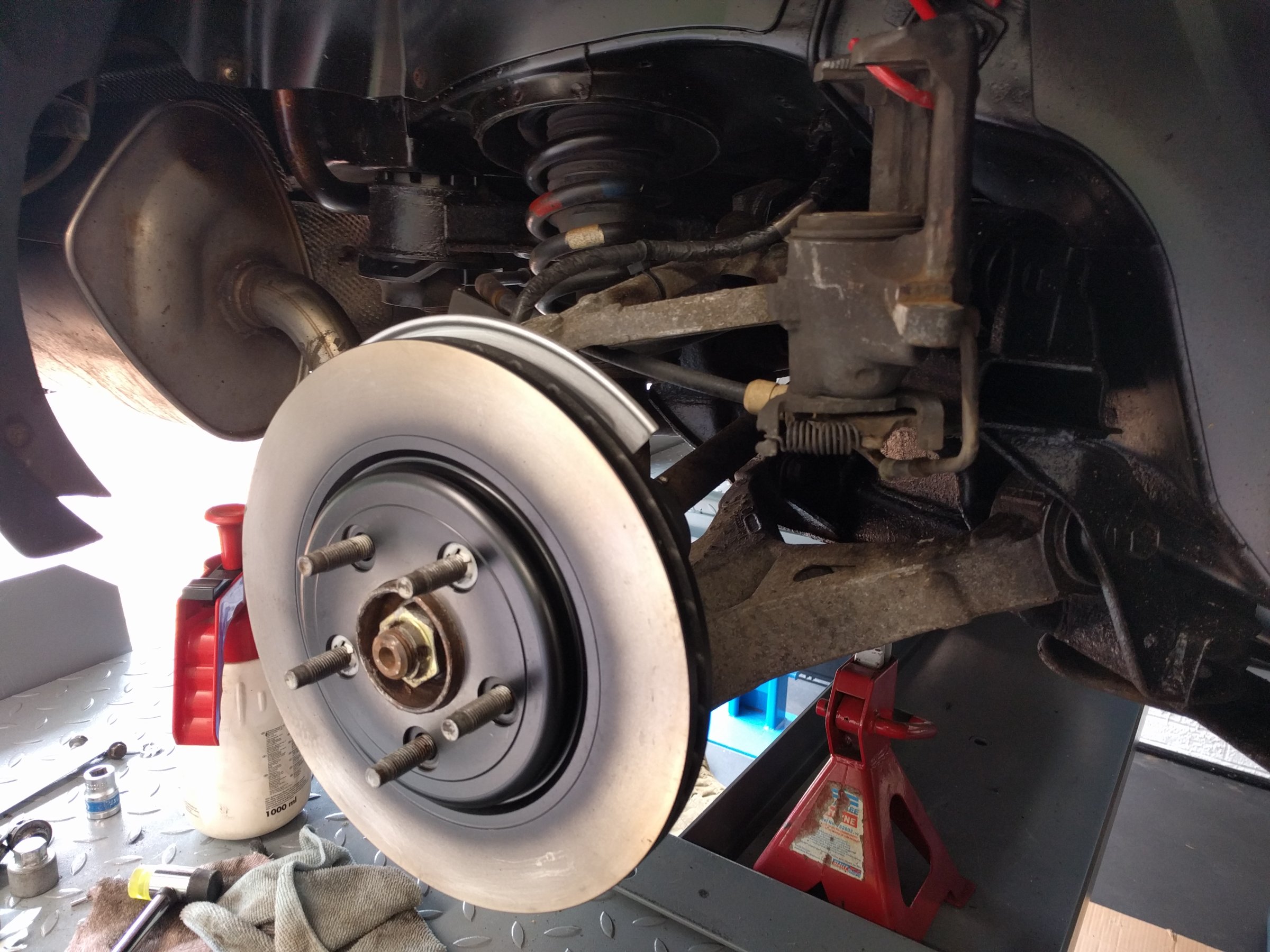

New OEM Rear Discs Fitted

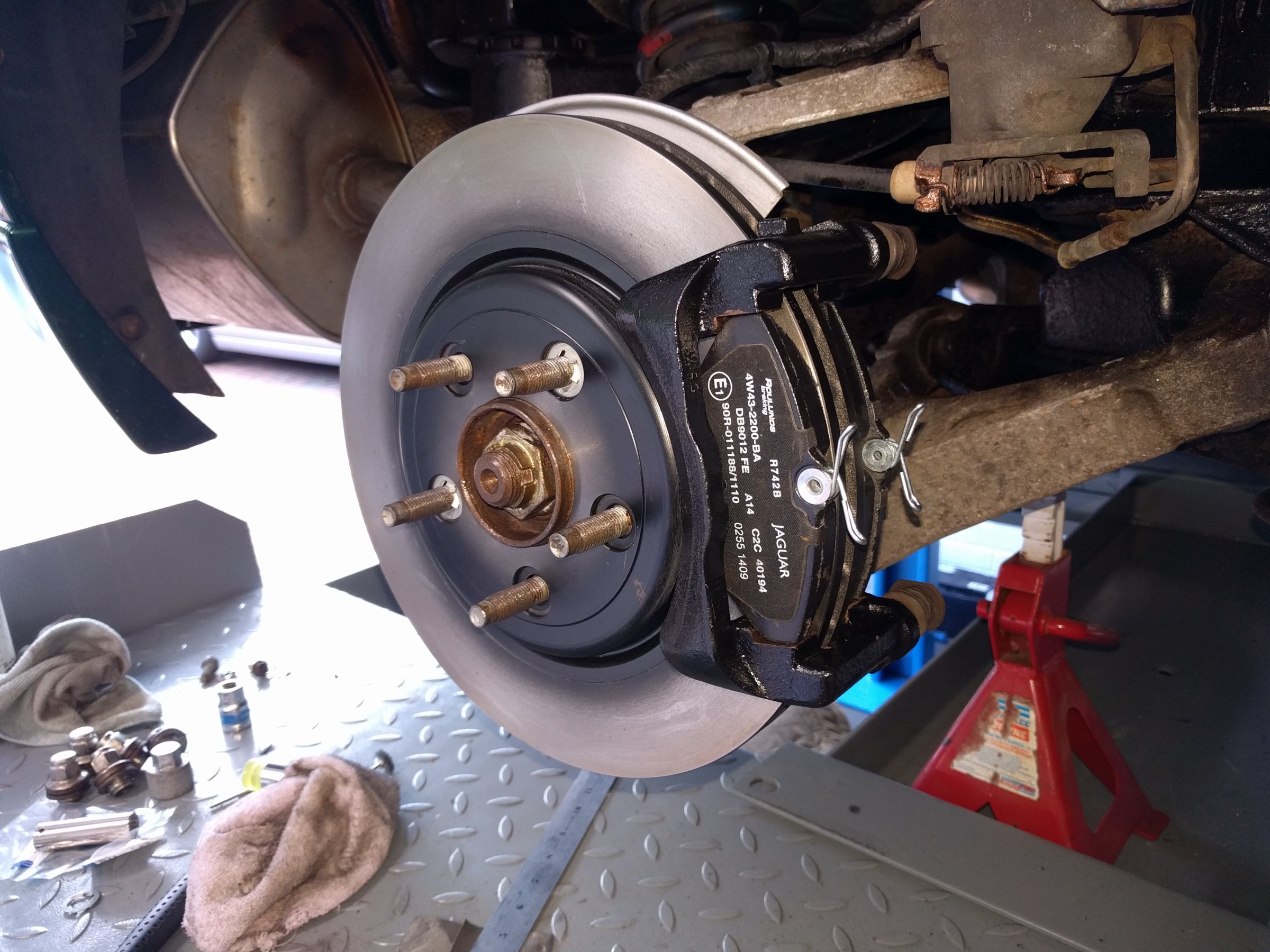

Caliper Cradle Painted and Fitted - New OEM Rear Pads Fitted

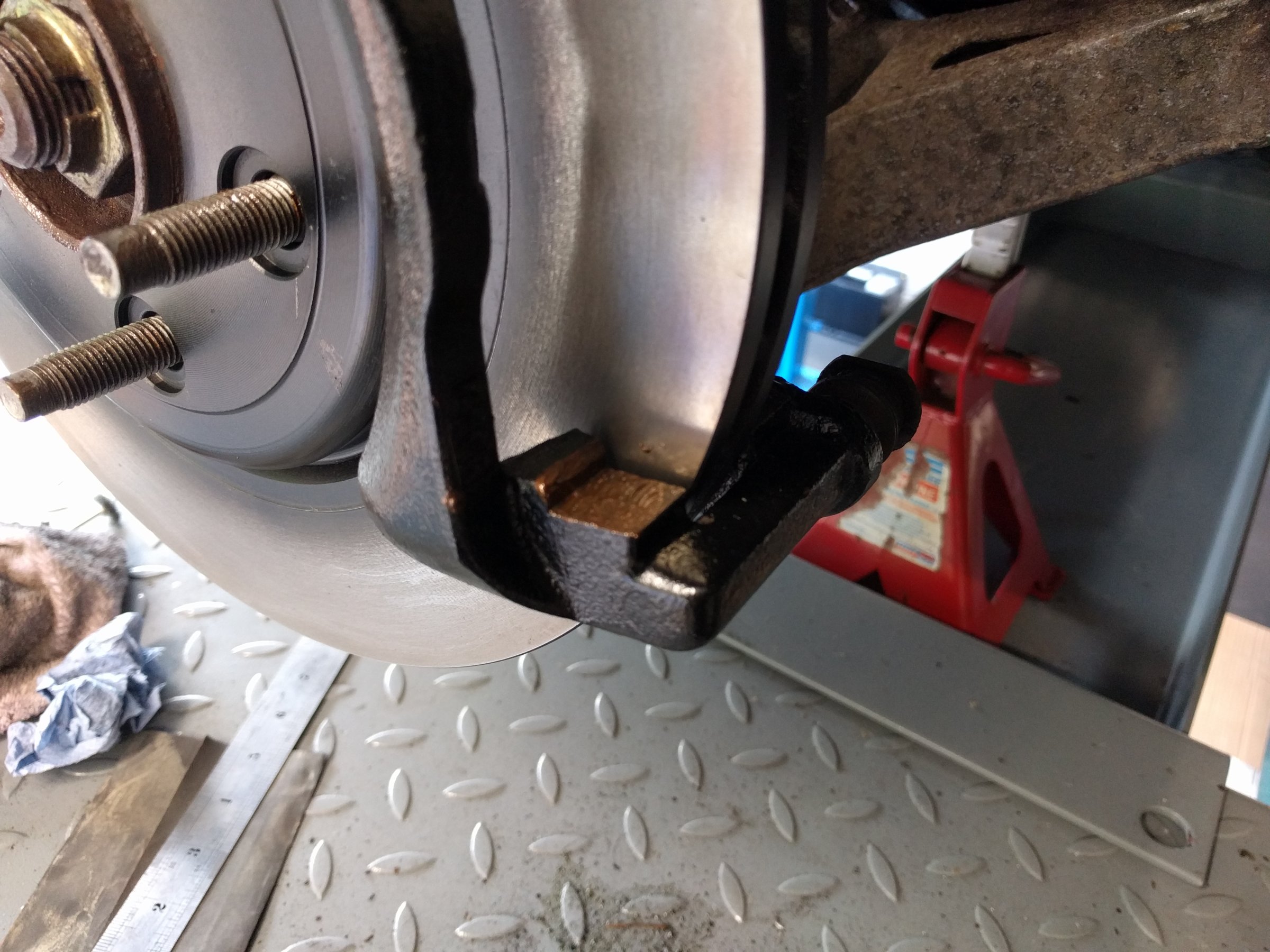

Area shown to Apply Copper Grease

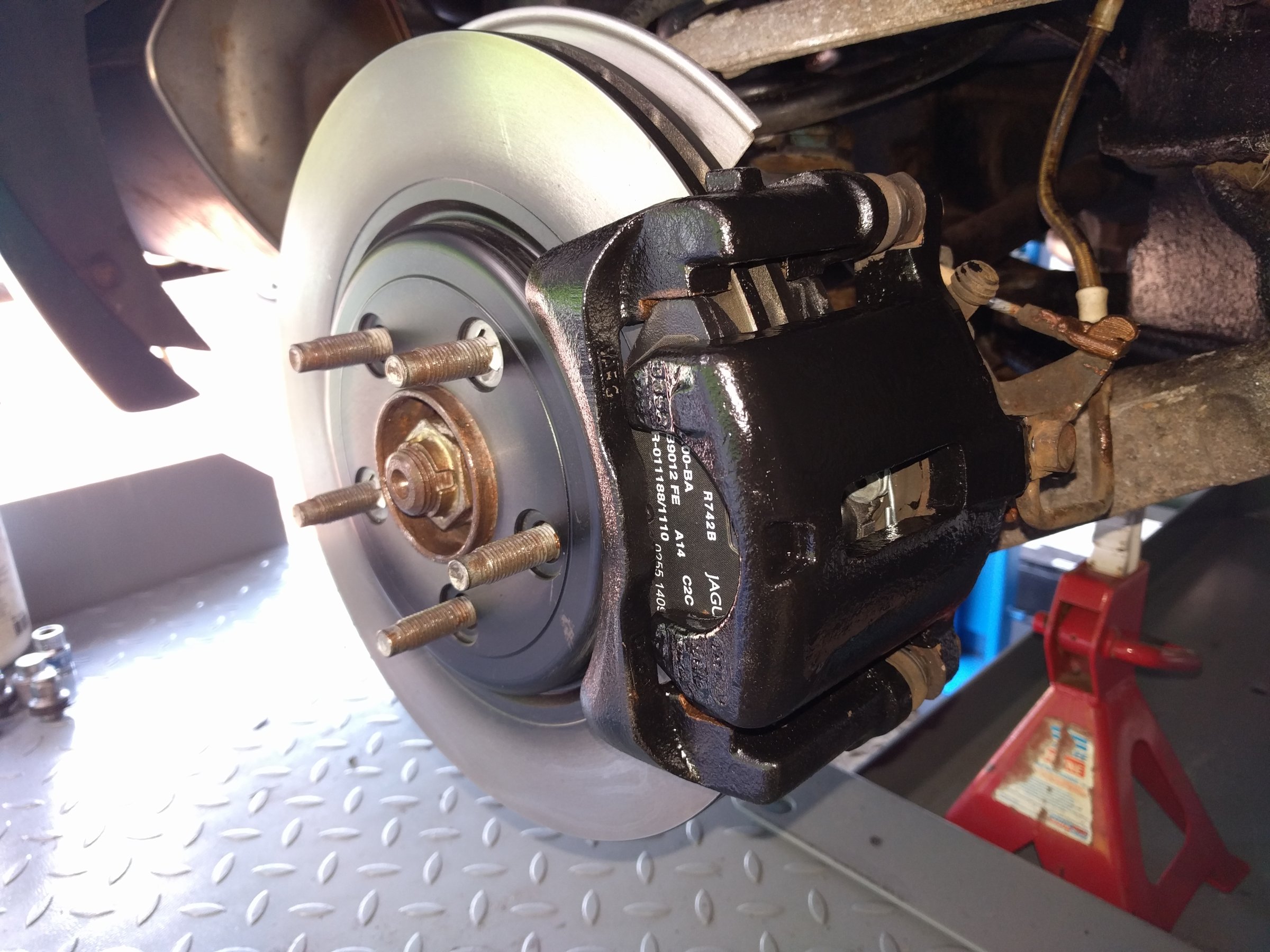

Caliper Painted and Fitted

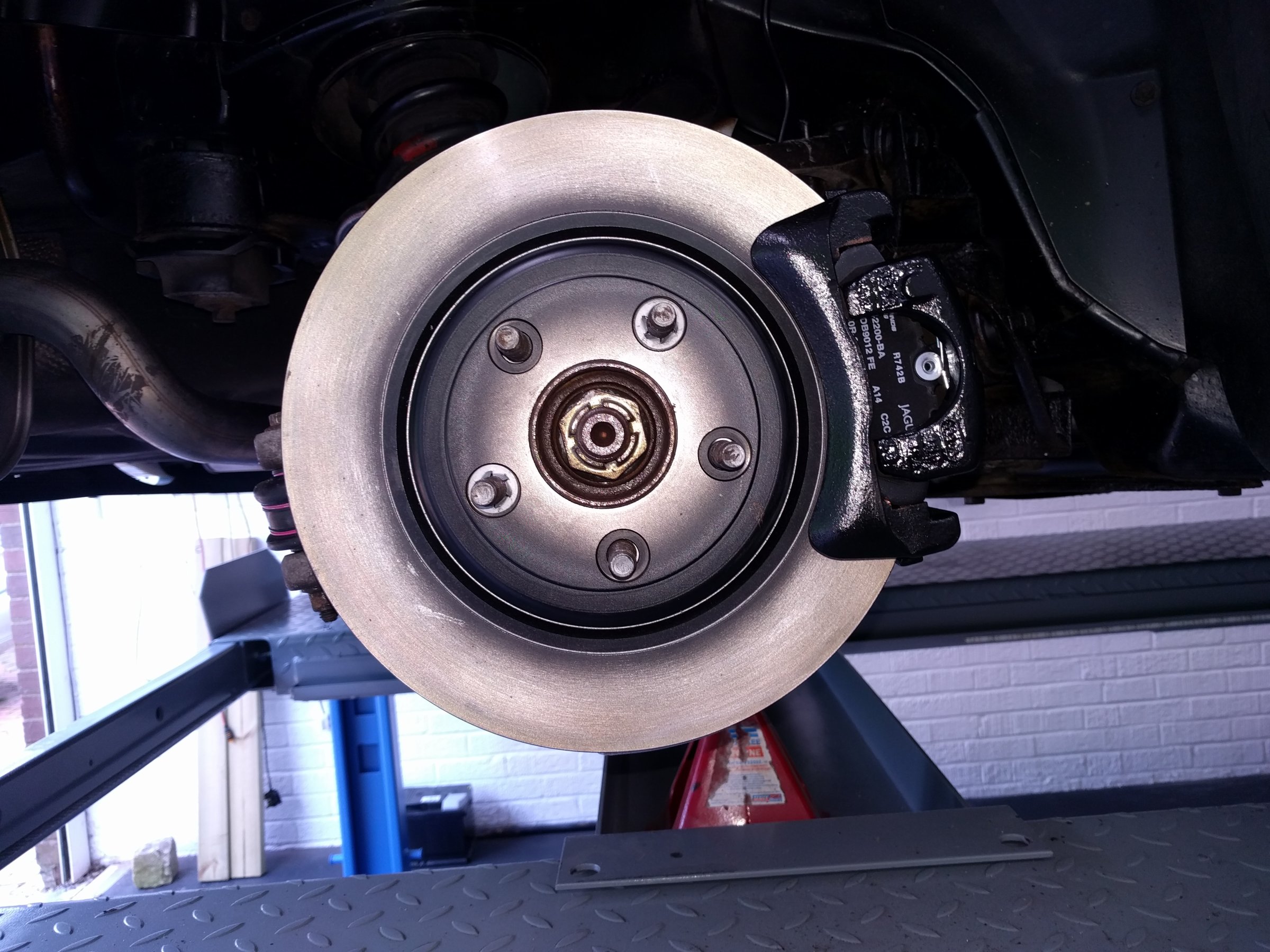

Finished Assembly
