Cooling Radiator, AC Condenser, Water Pump, Hoses, Crank Pulley Oil Seal Replacement.

Front Bumper and Crash Bar removed for ease of access and Headlights removed for restoration.

28 July 2026 · Maintenance
A/C Rad blown and cooling rad damaged
Front End Disassembly underway
Removing Radiators

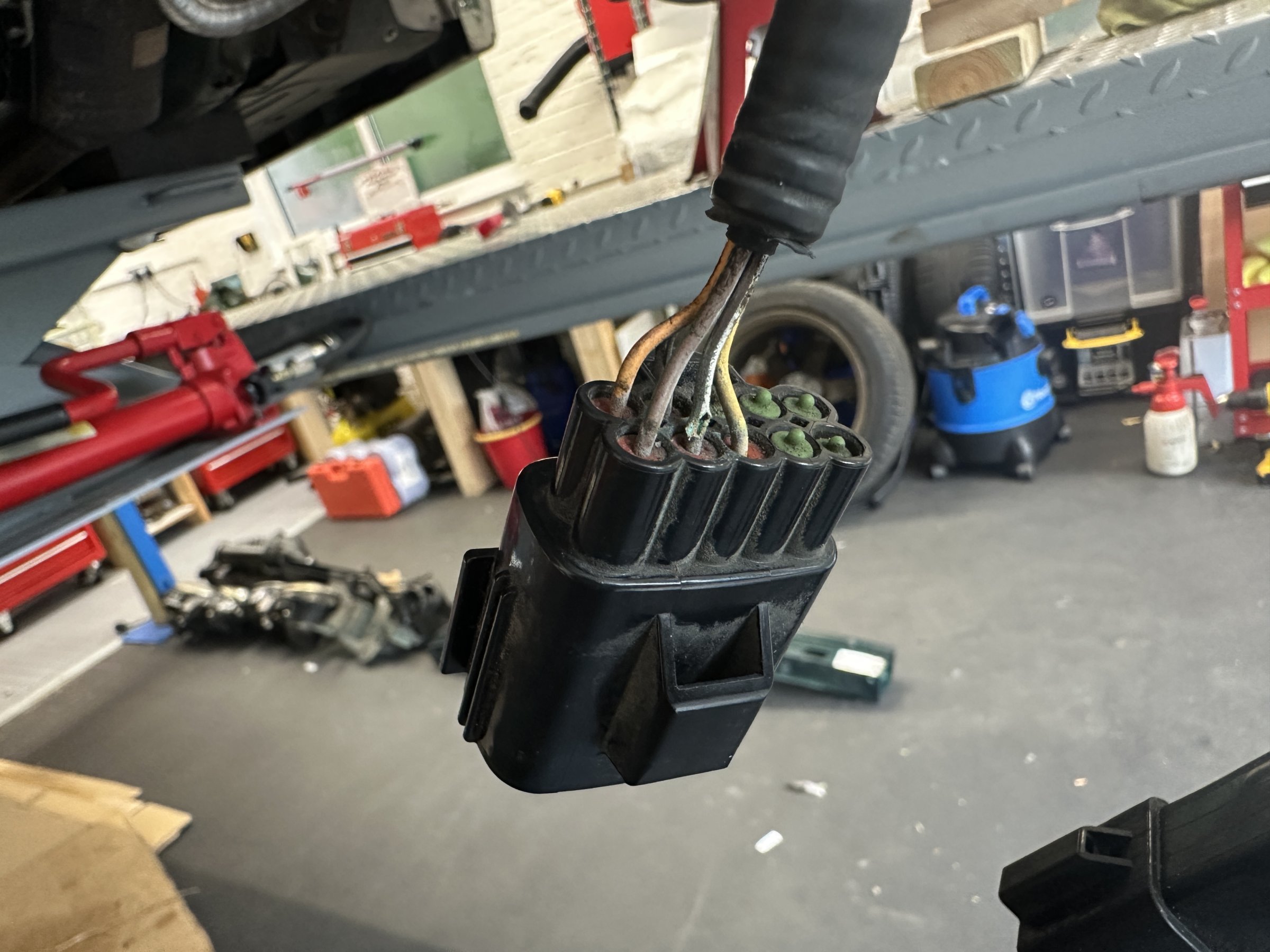

Damaged corroded harness wire found

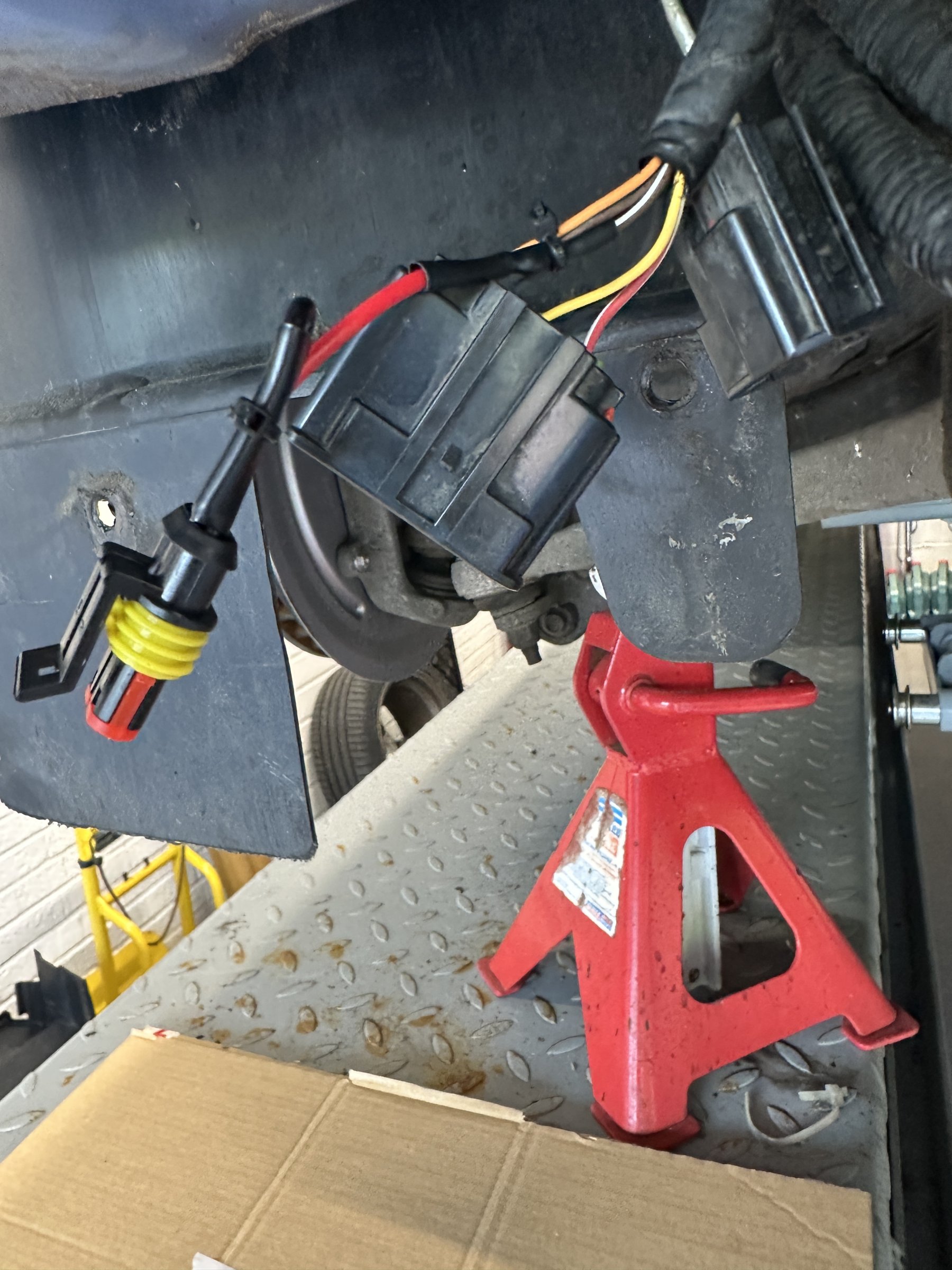

Bypass connector fitted to fix harness wire issue

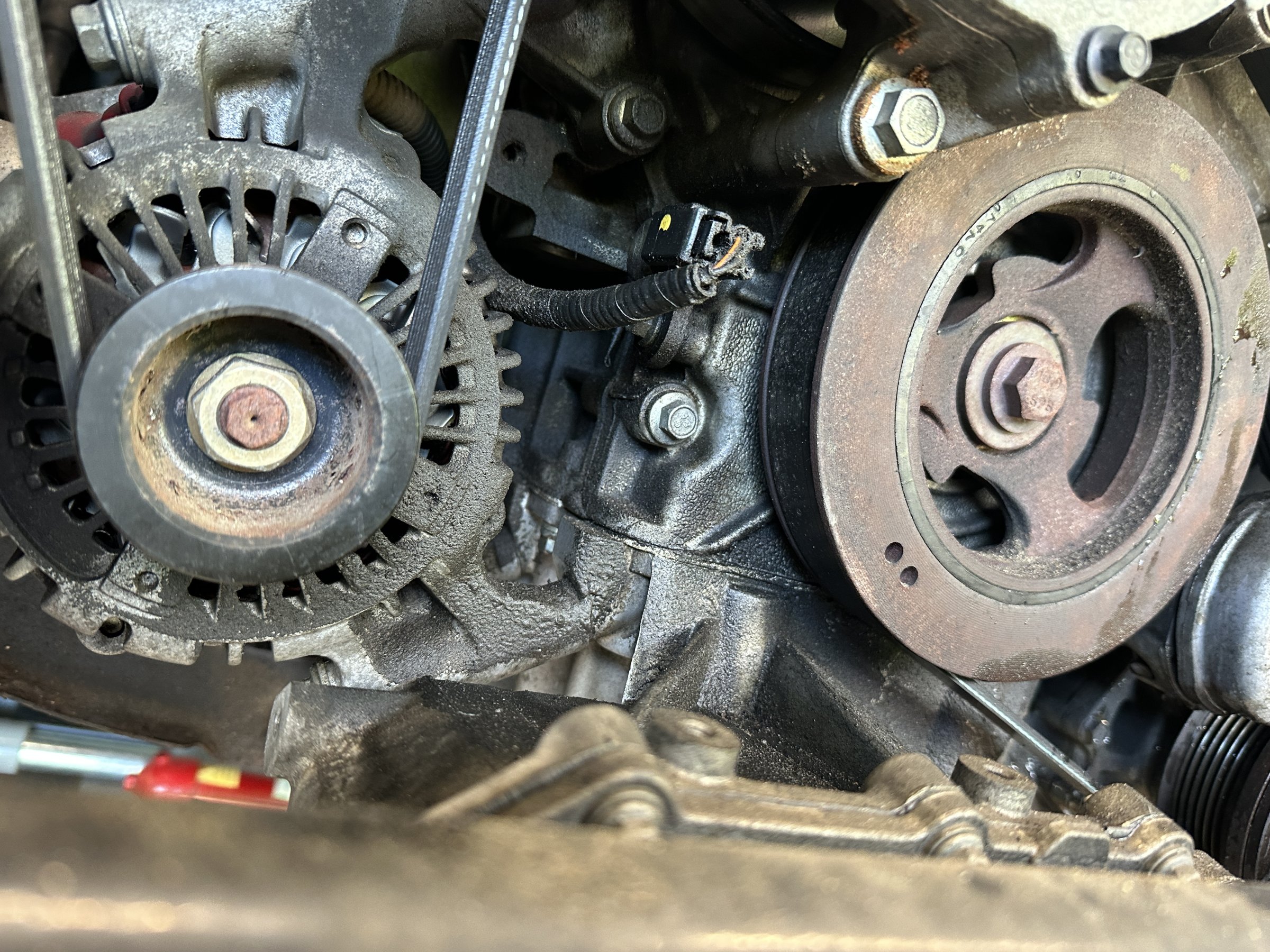

Evidence that Crank Pulley seal is leaking

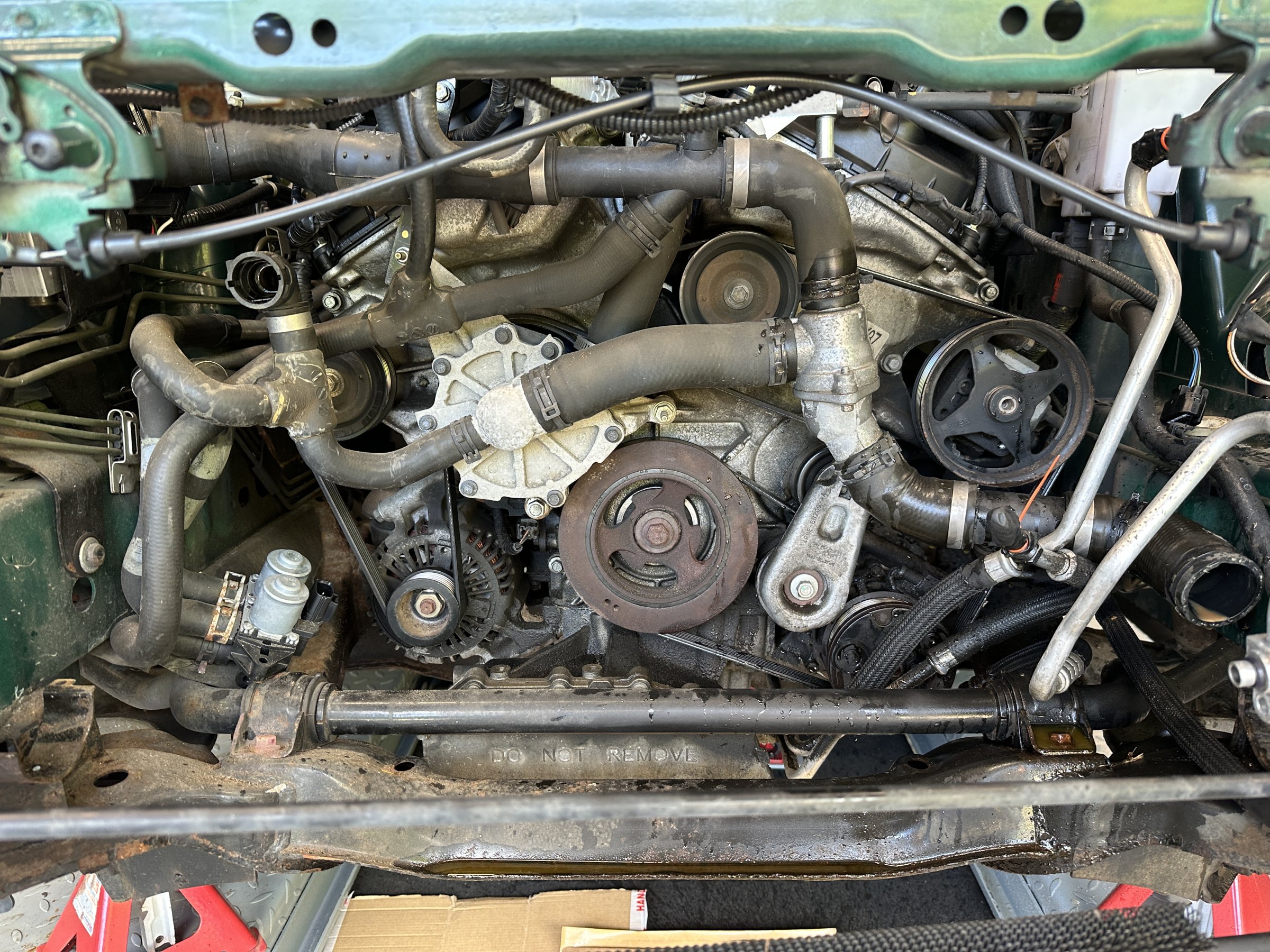

Ready to remove hoses, thermostat housing, water pump, idlers and Aux Drive Belt

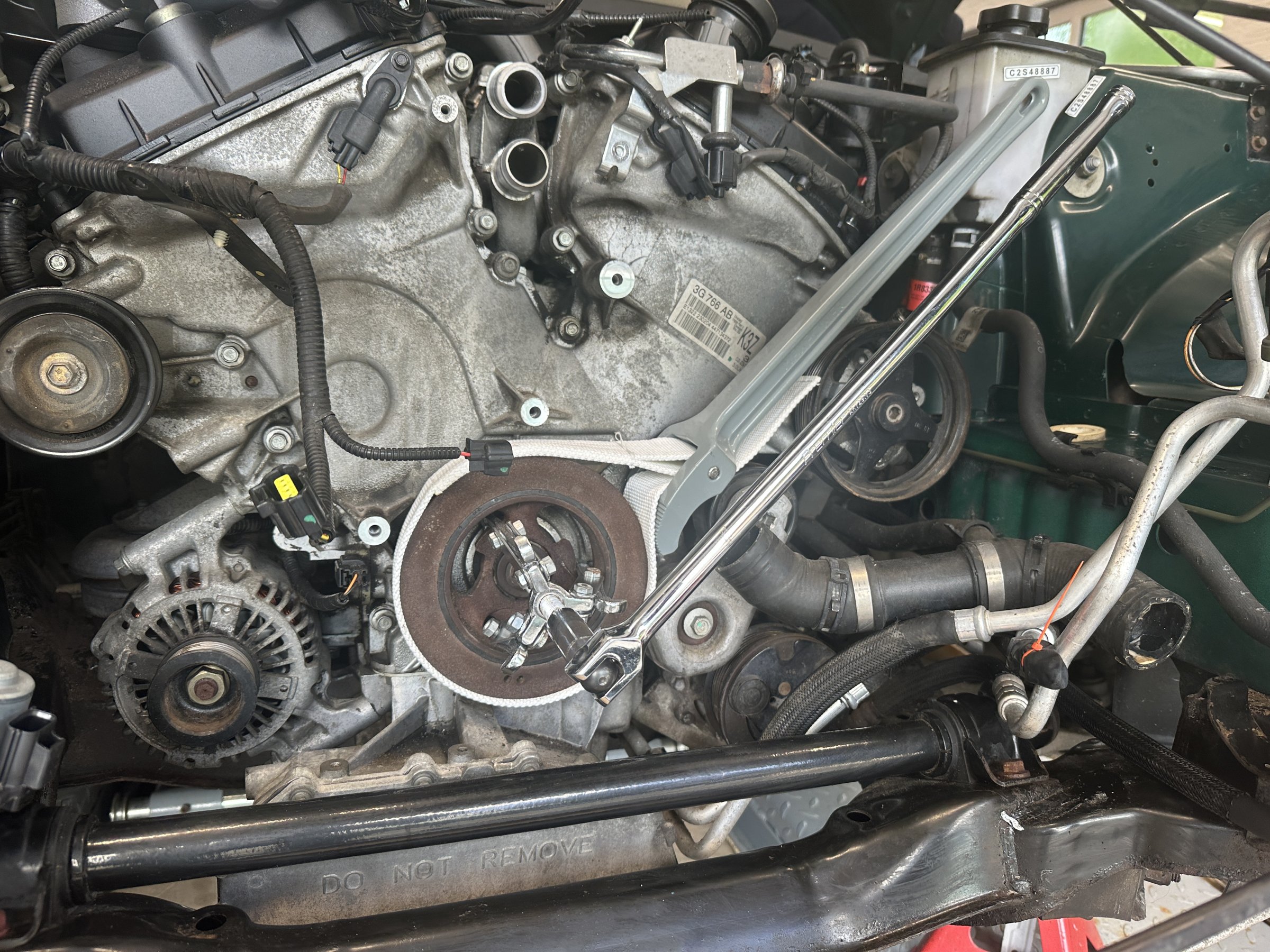

Oil leak cleaned up - Removing Crankshaft Pulley

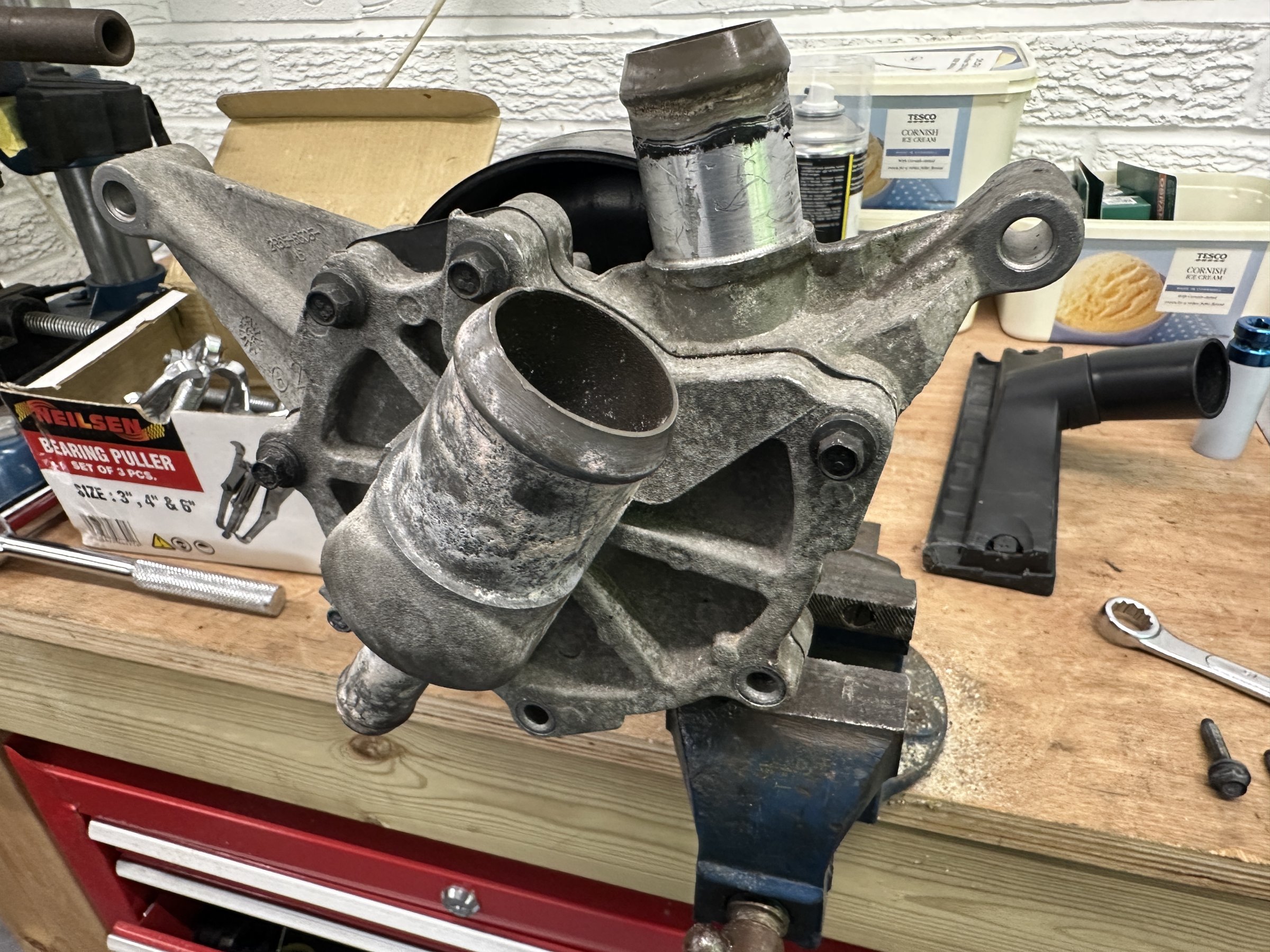

Water pump ready to strip

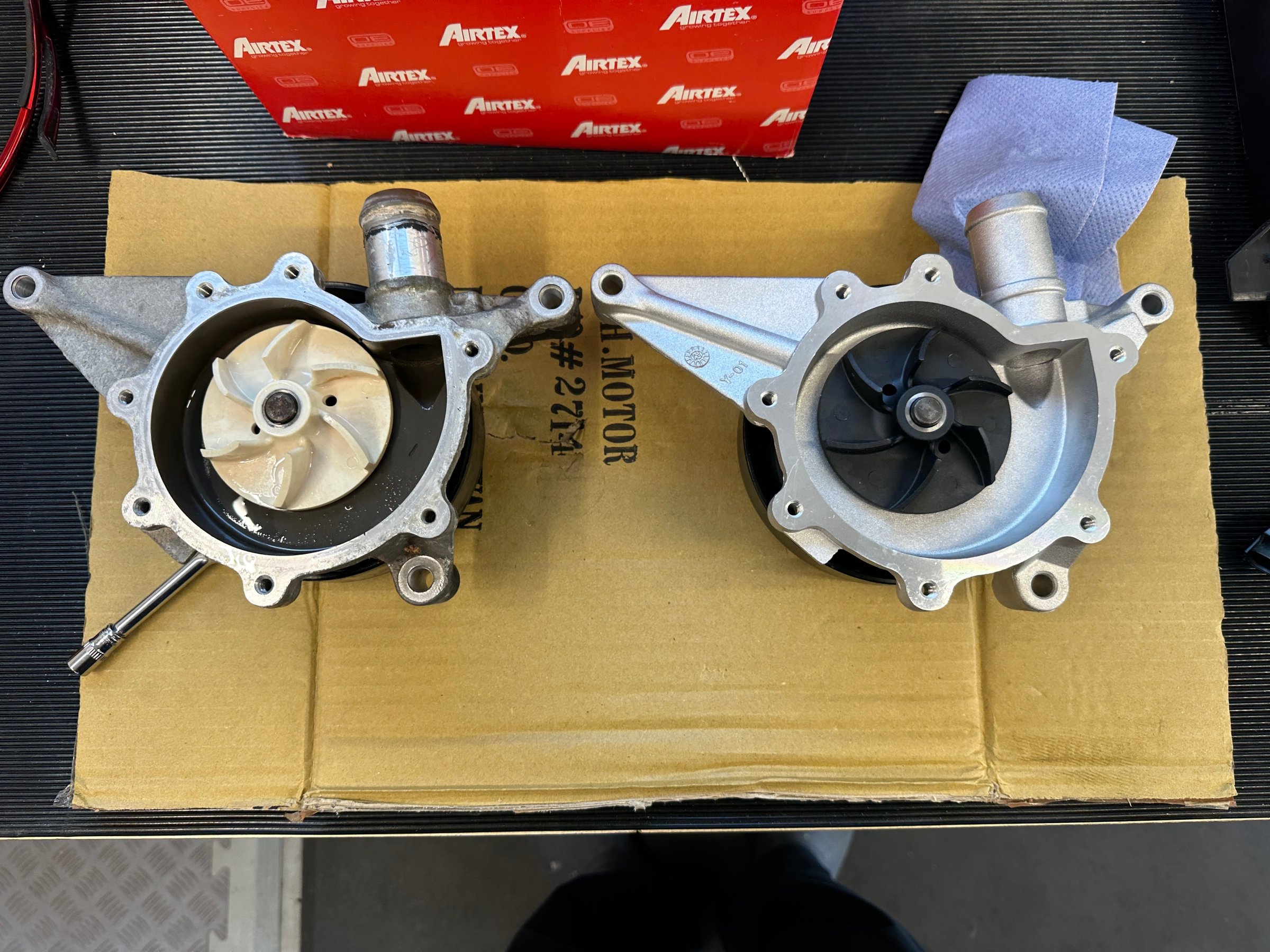

Water pump separated for replacement

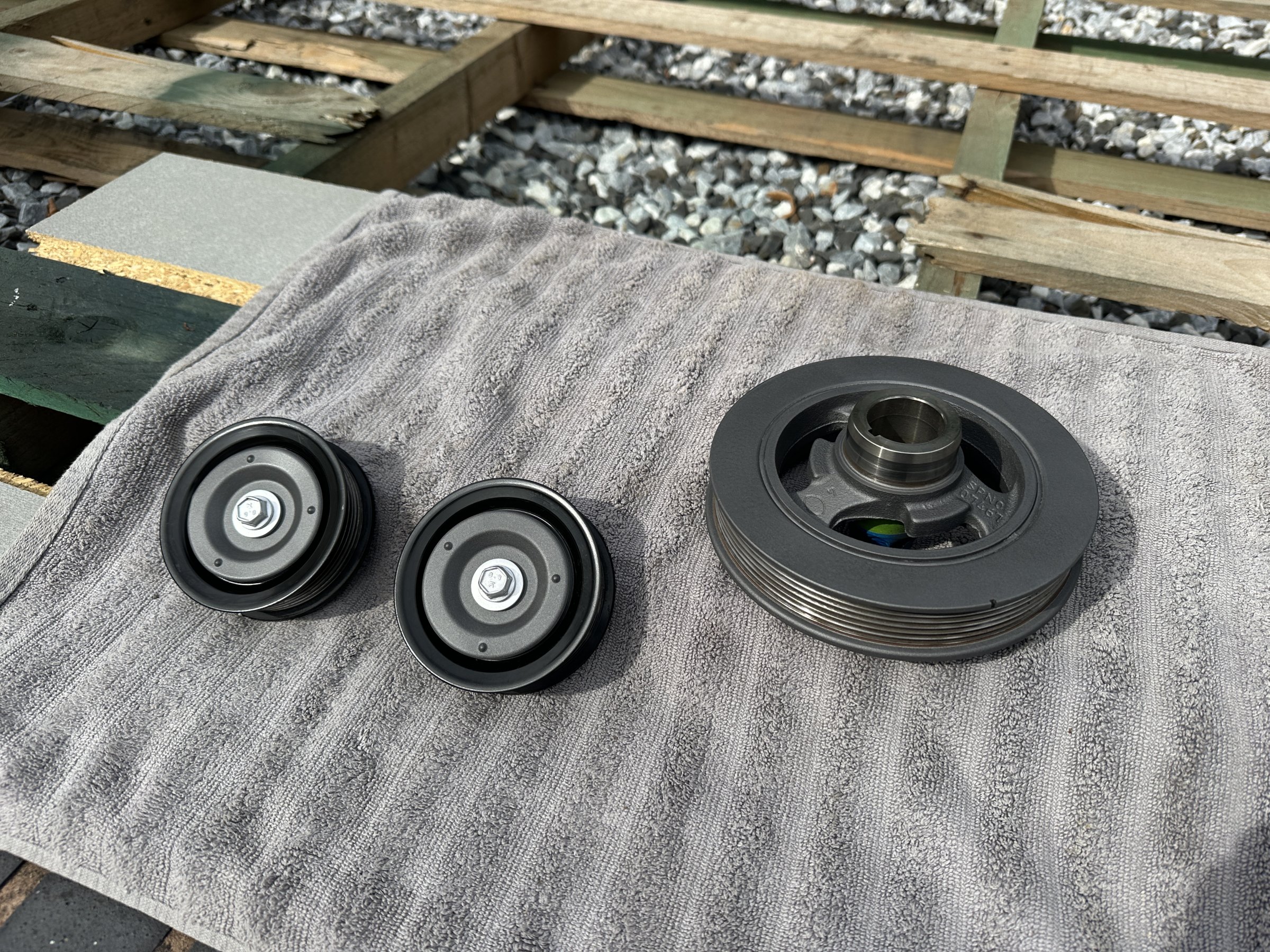

Idlers and crank pulley refurbished

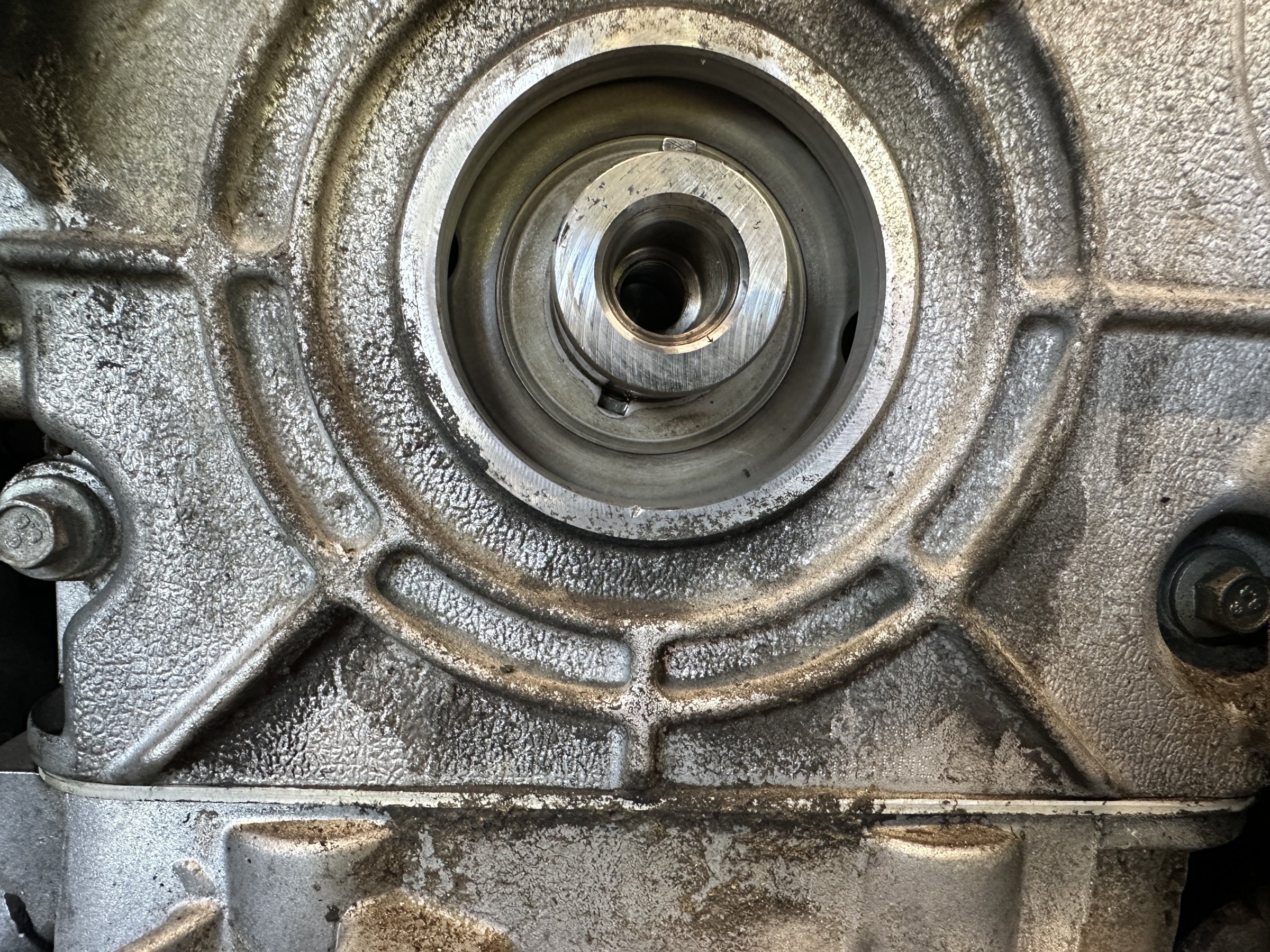

Crank seal removed

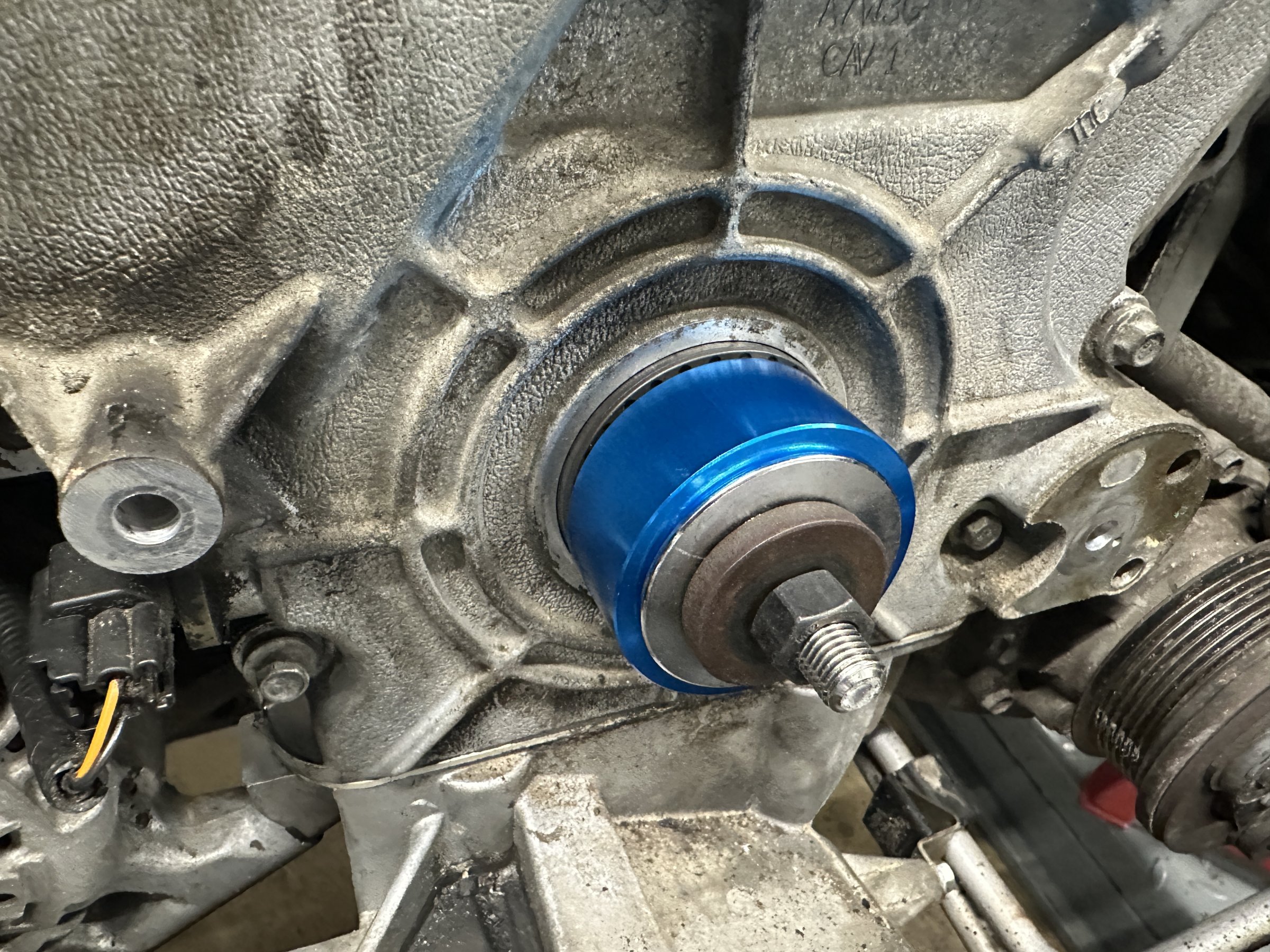

Pressing in new crank seal

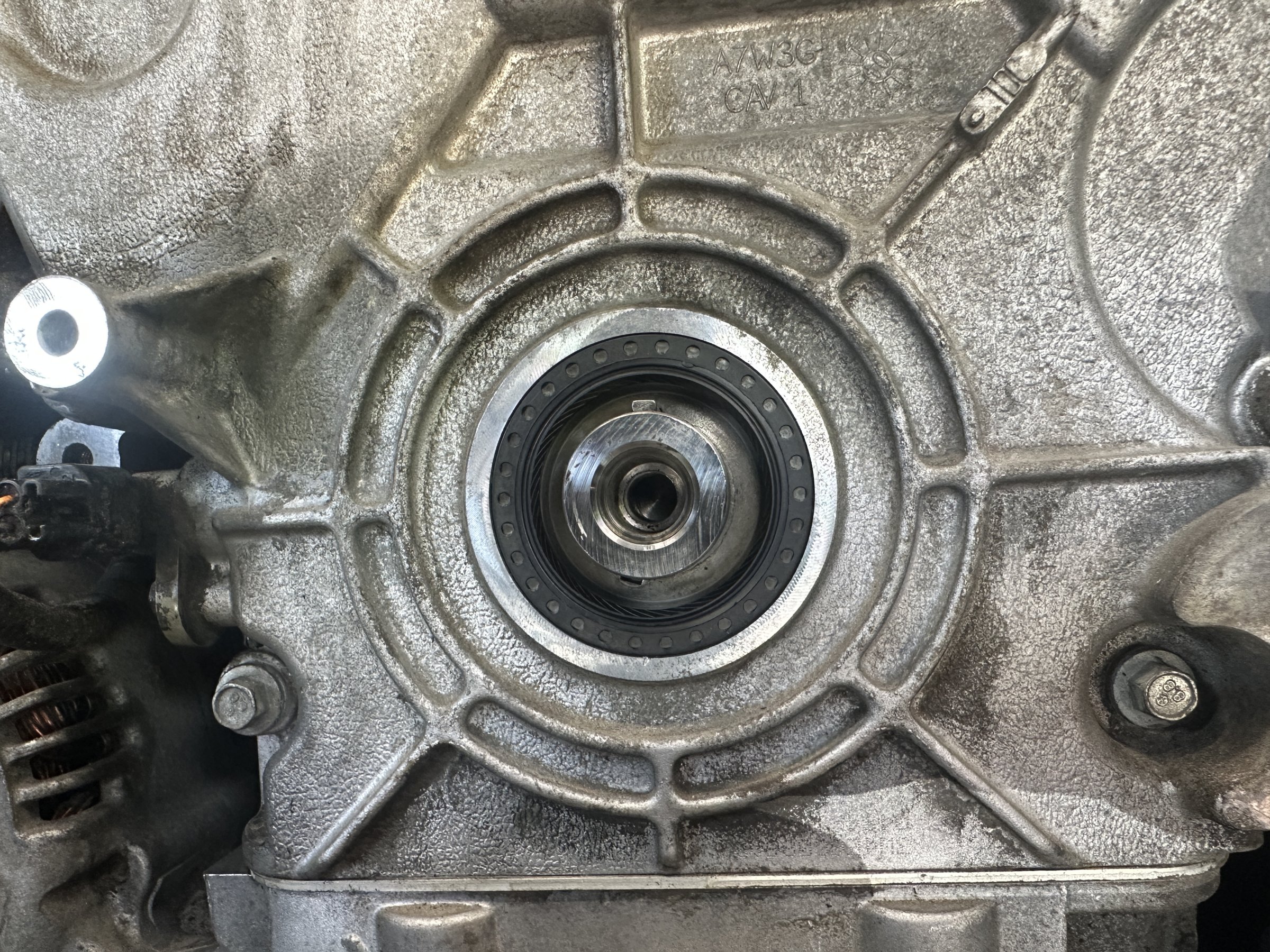

Crank seal fitted

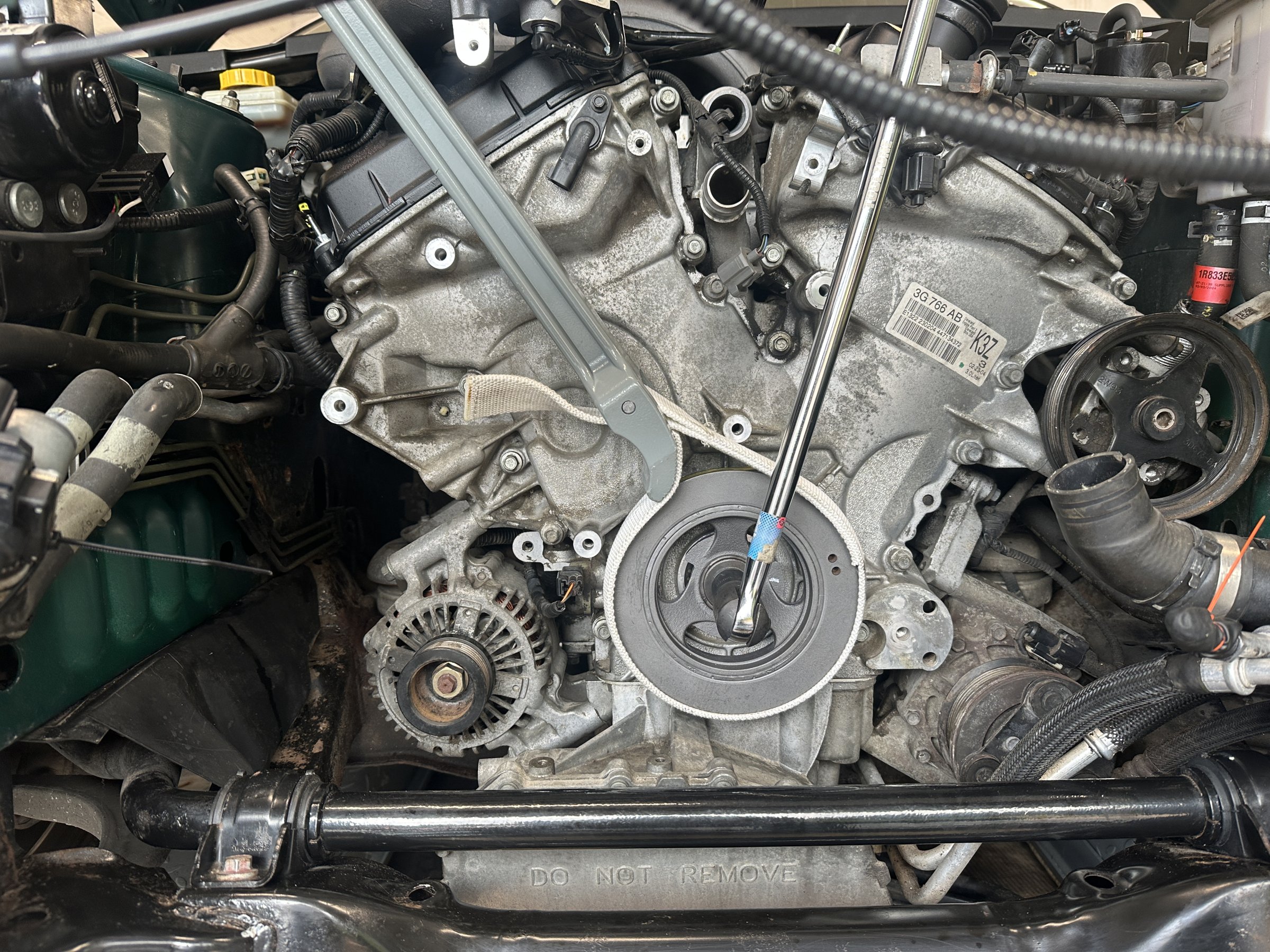

Fitting crank pulley with new stretch bolt

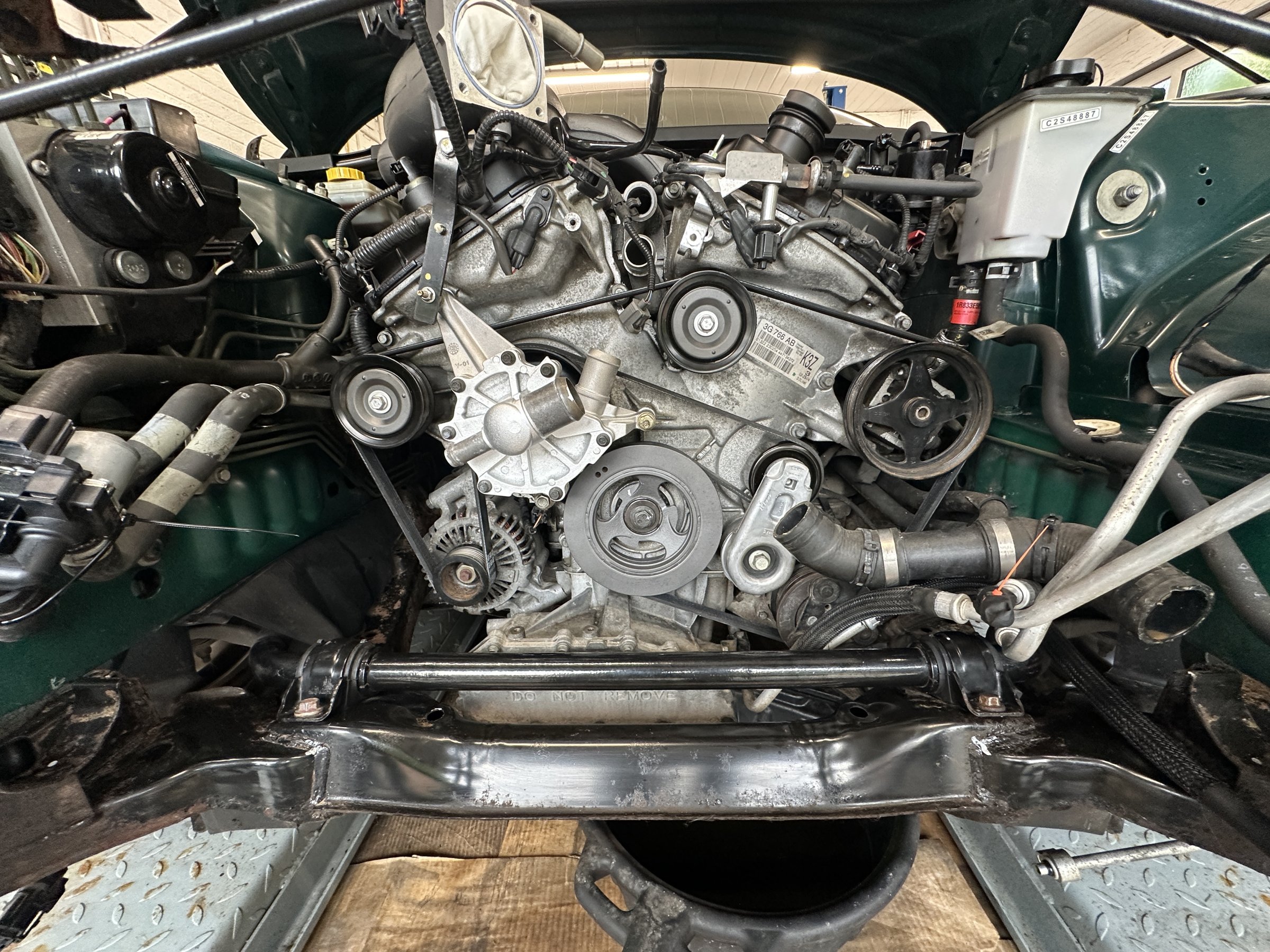

Idlers, water pump and Aux belt fitted

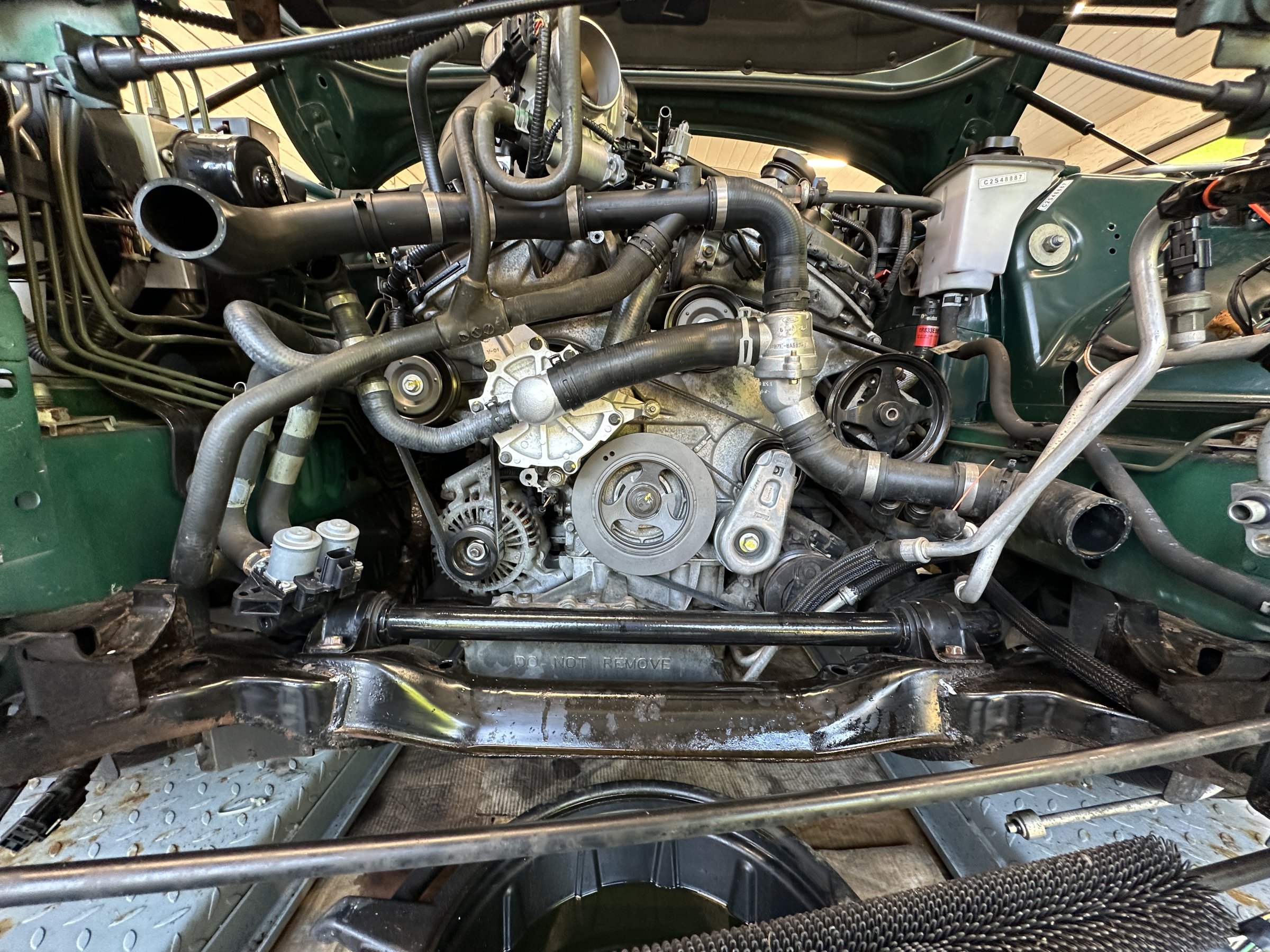

New Thermostat housing and main hoses fitted

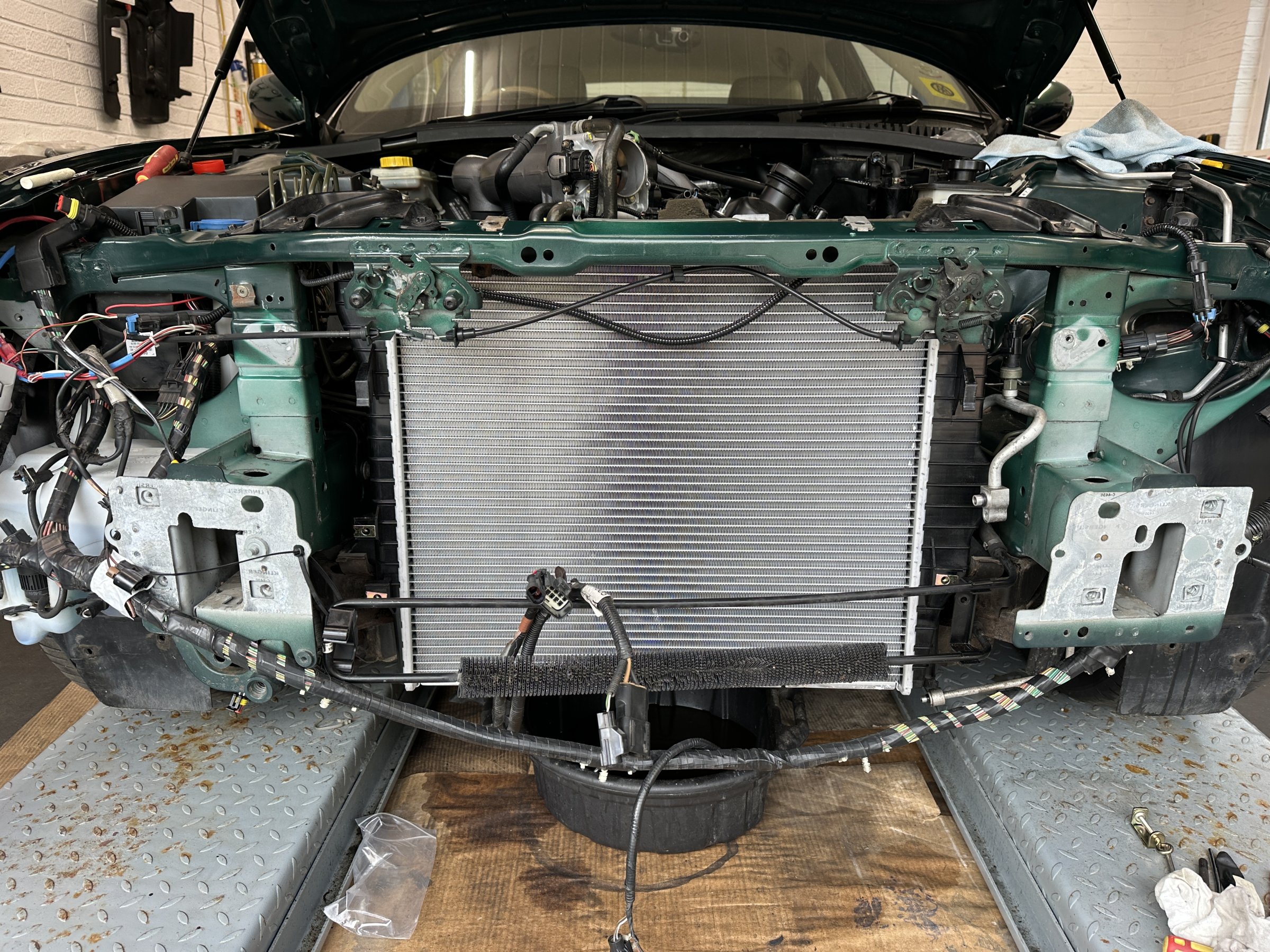

New Cooling Rad fitted and connected to hoses and gearbox cooling pipes.

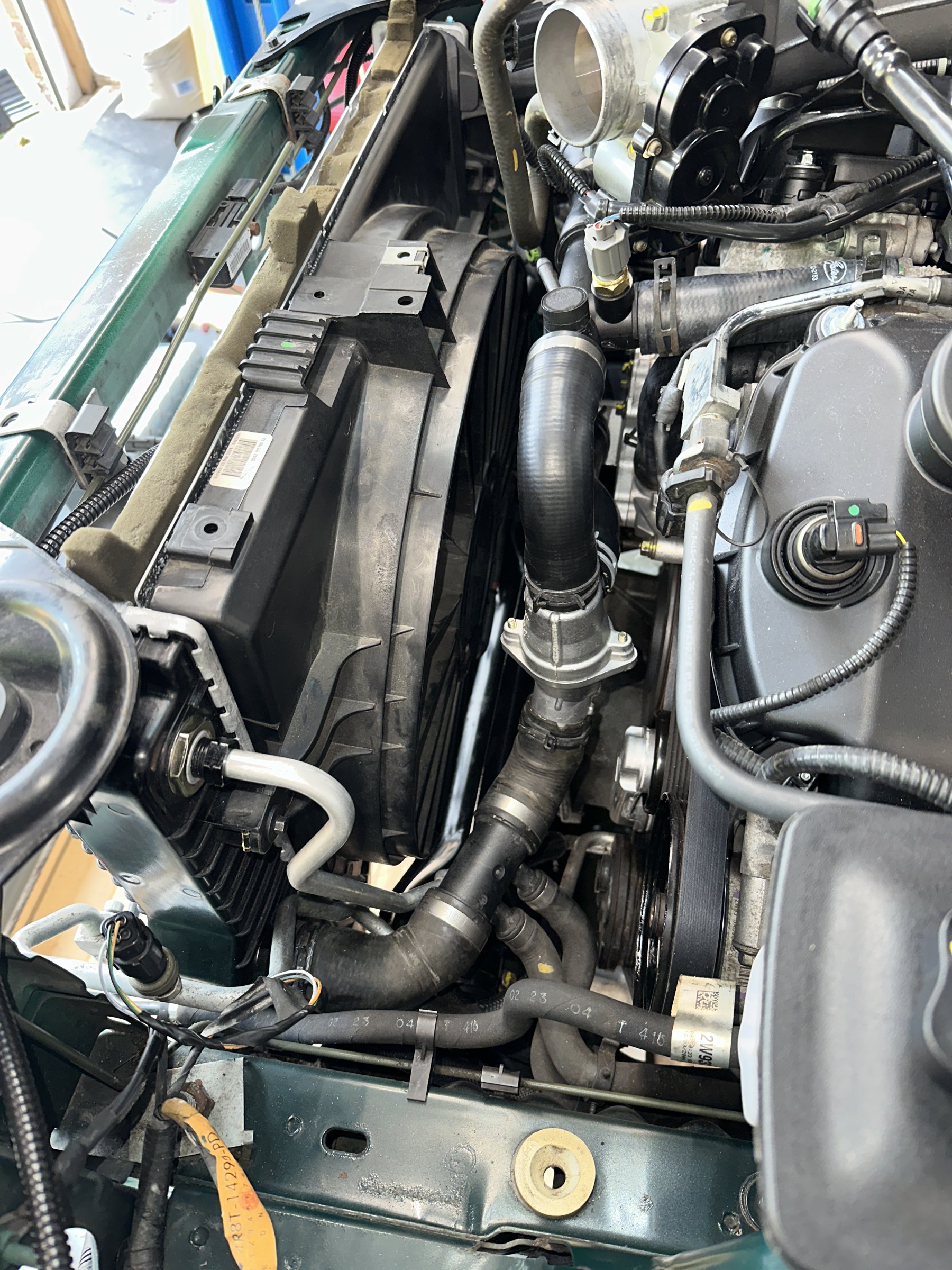

Electric Fan and Cowling fitted

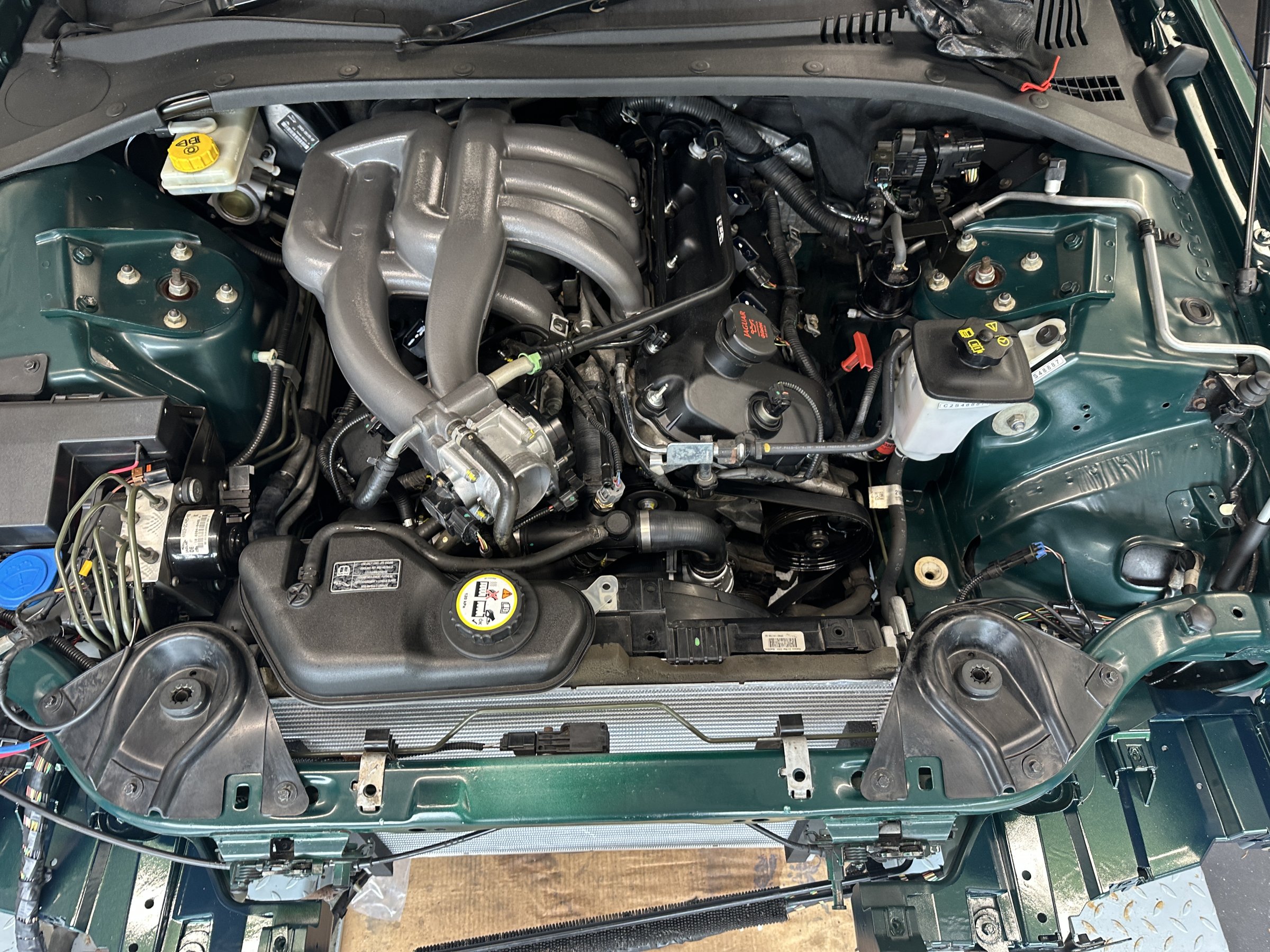

Header Tank re-fitted

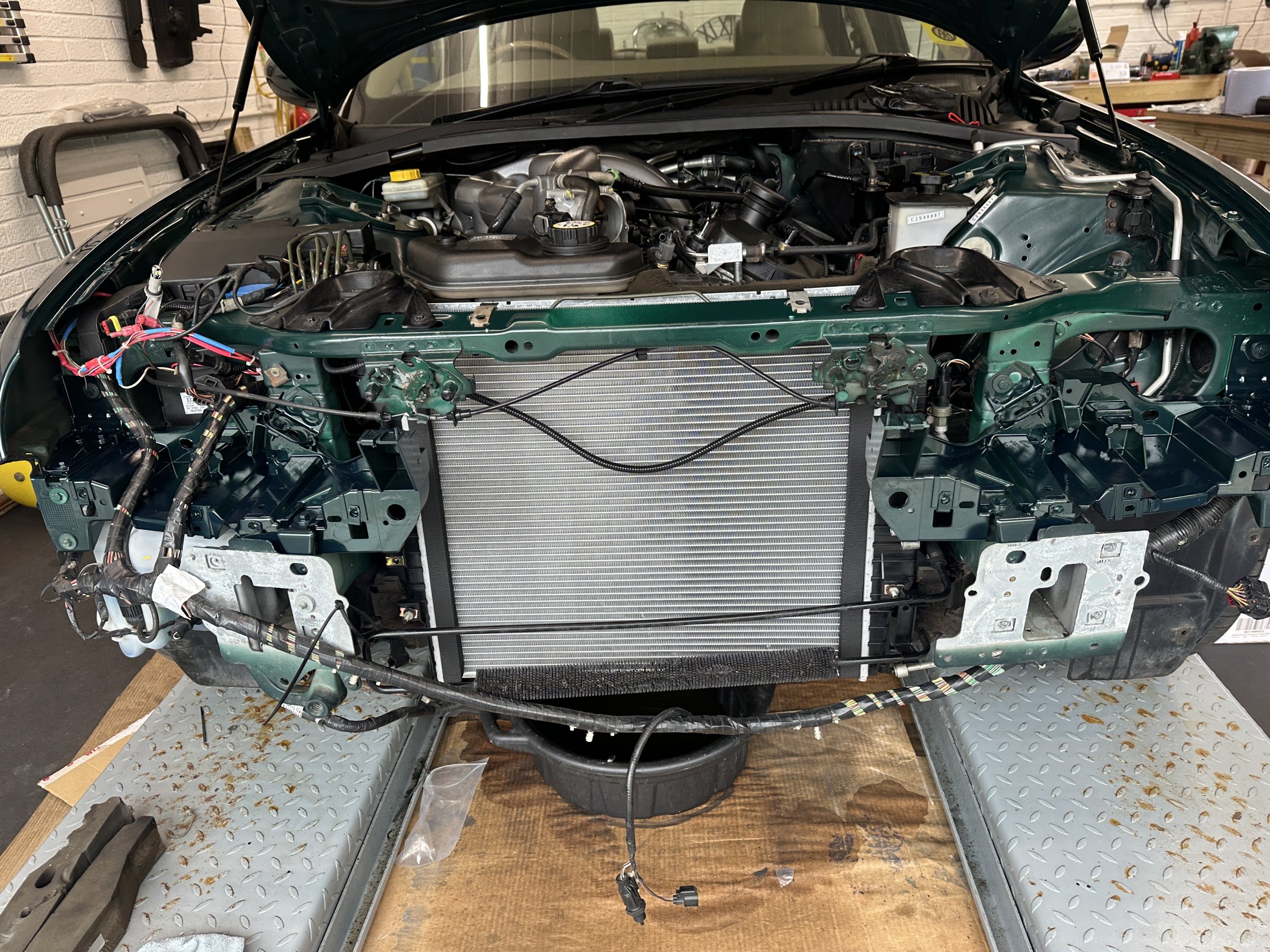

Foam insulation fitted to Rad ready to receive A/C Condenser

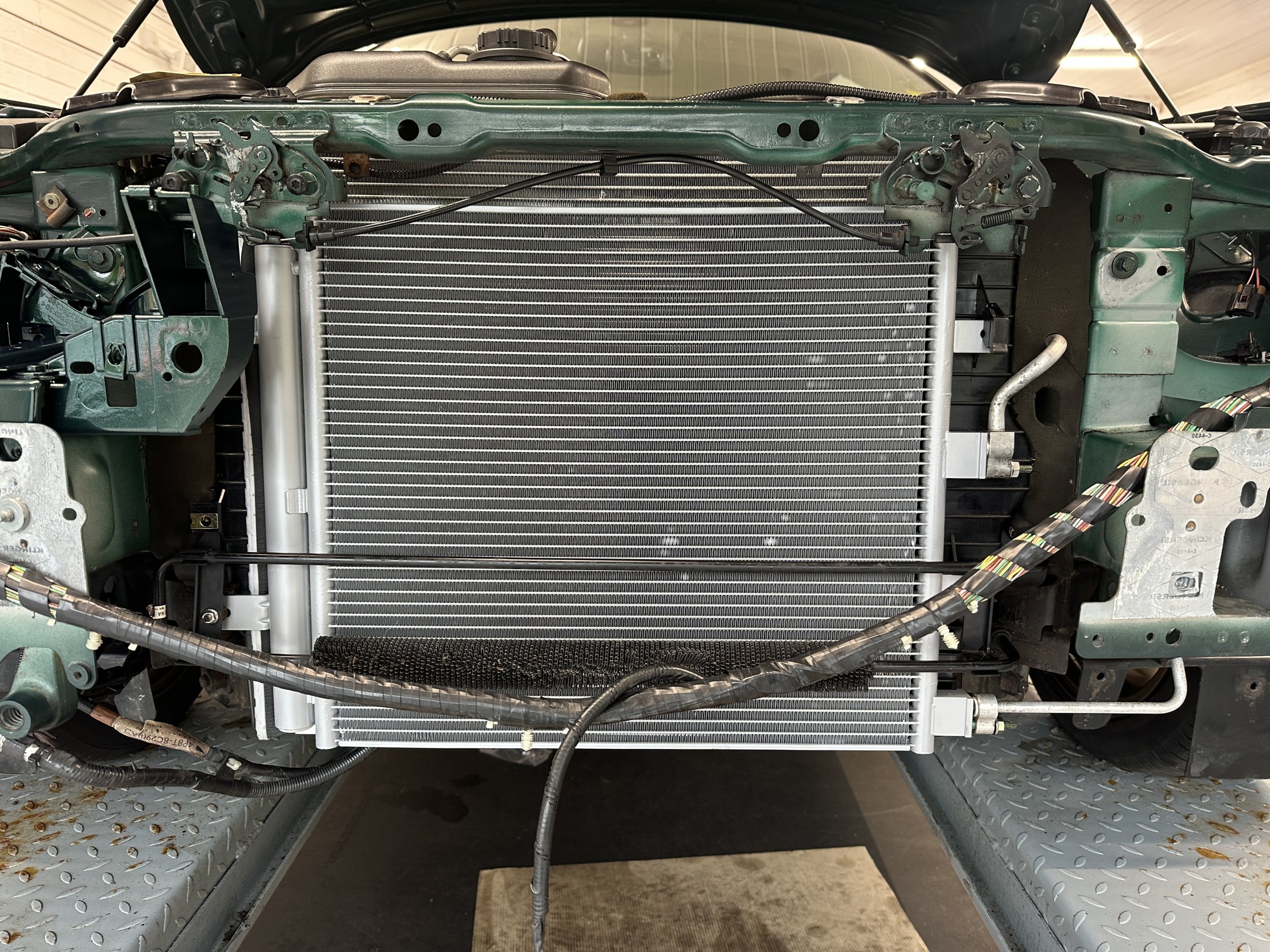

A/C Condenser installed along with Rad side foam Insulators

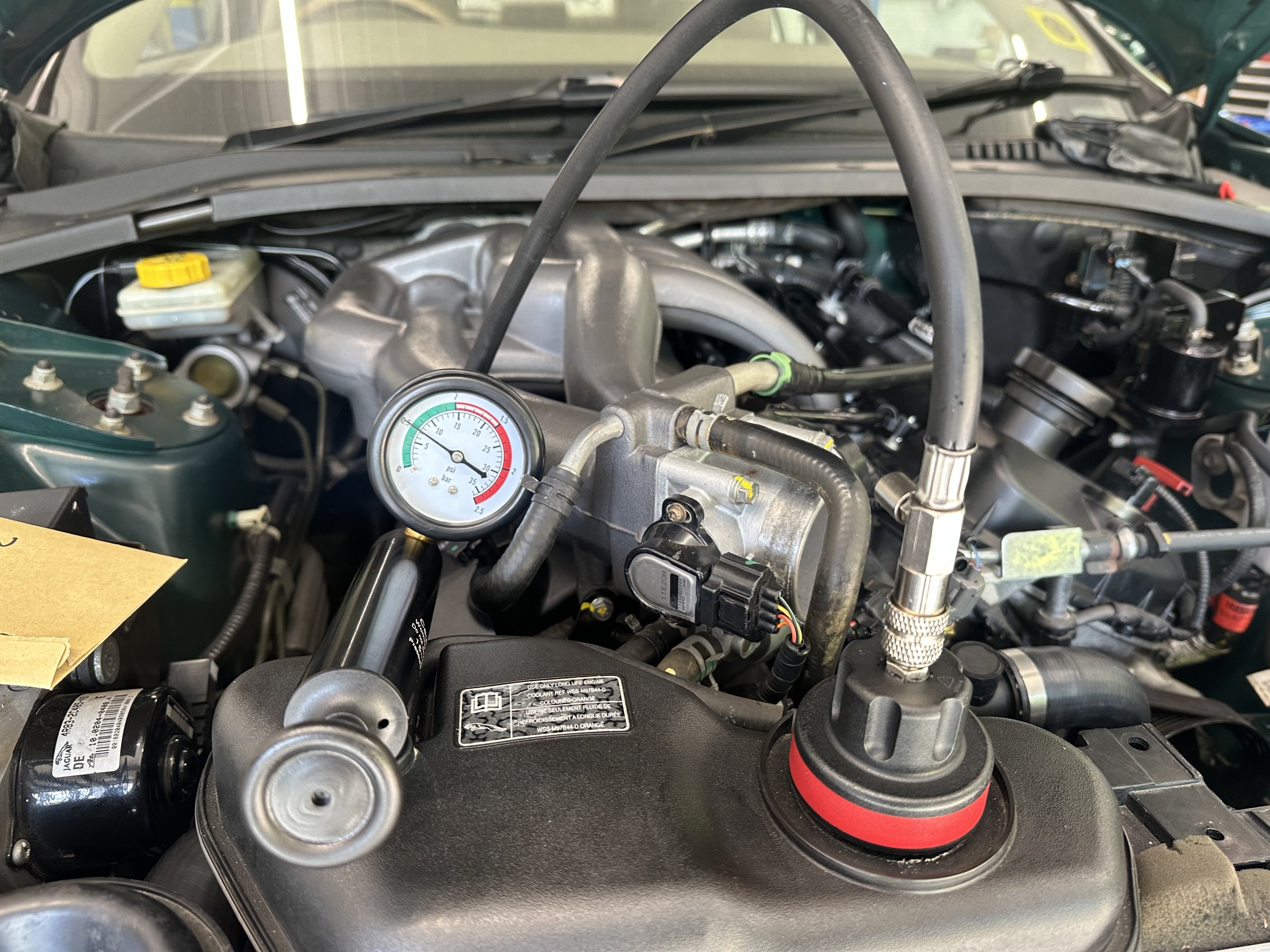

System pressure tested for leaks

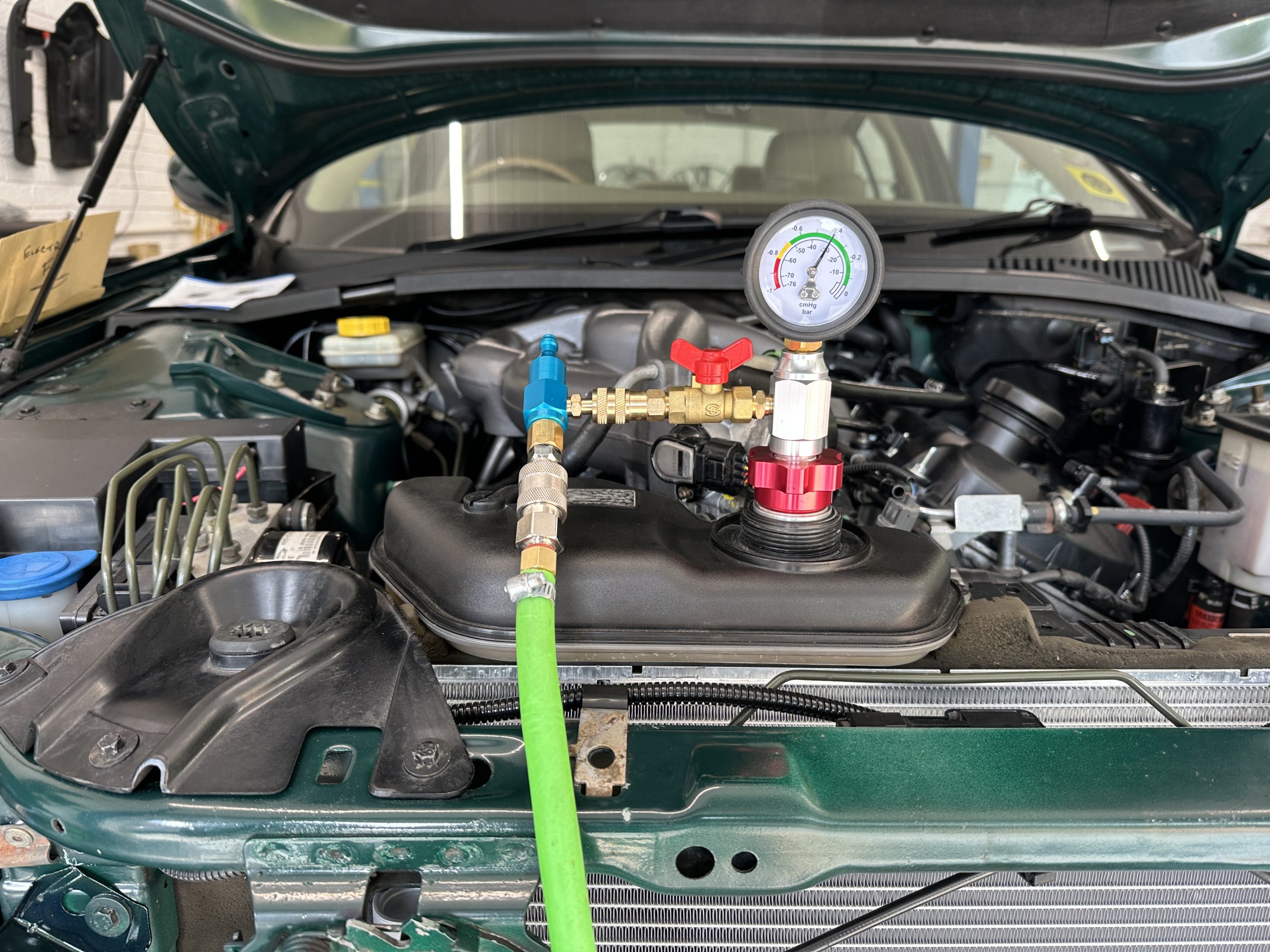

System filled with Deionised water and flushing fluid. Coolant added after flush.

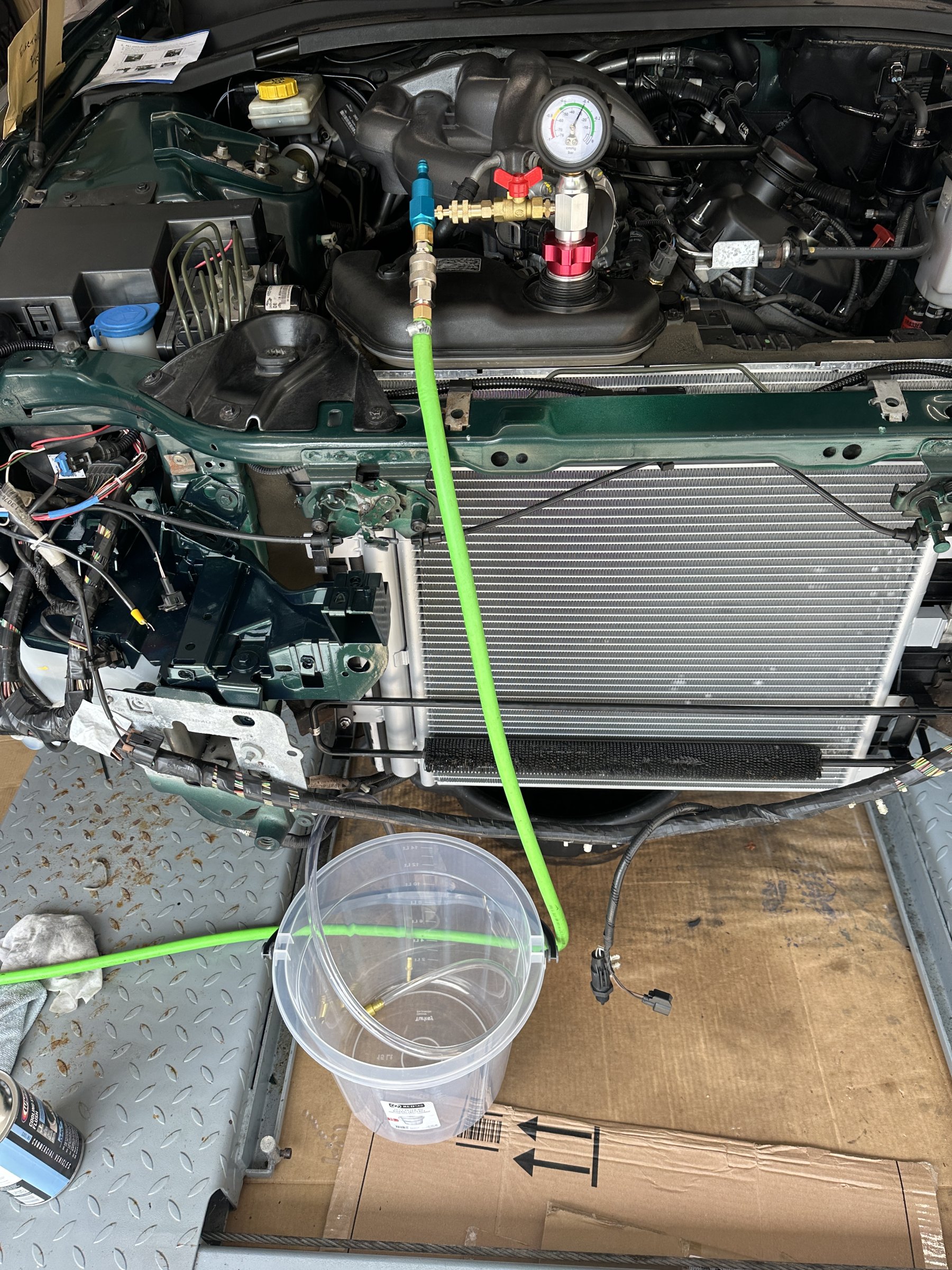

Creating vacuum in cooling system in readiness to add final fill of 50% coolant and 50% deionised water

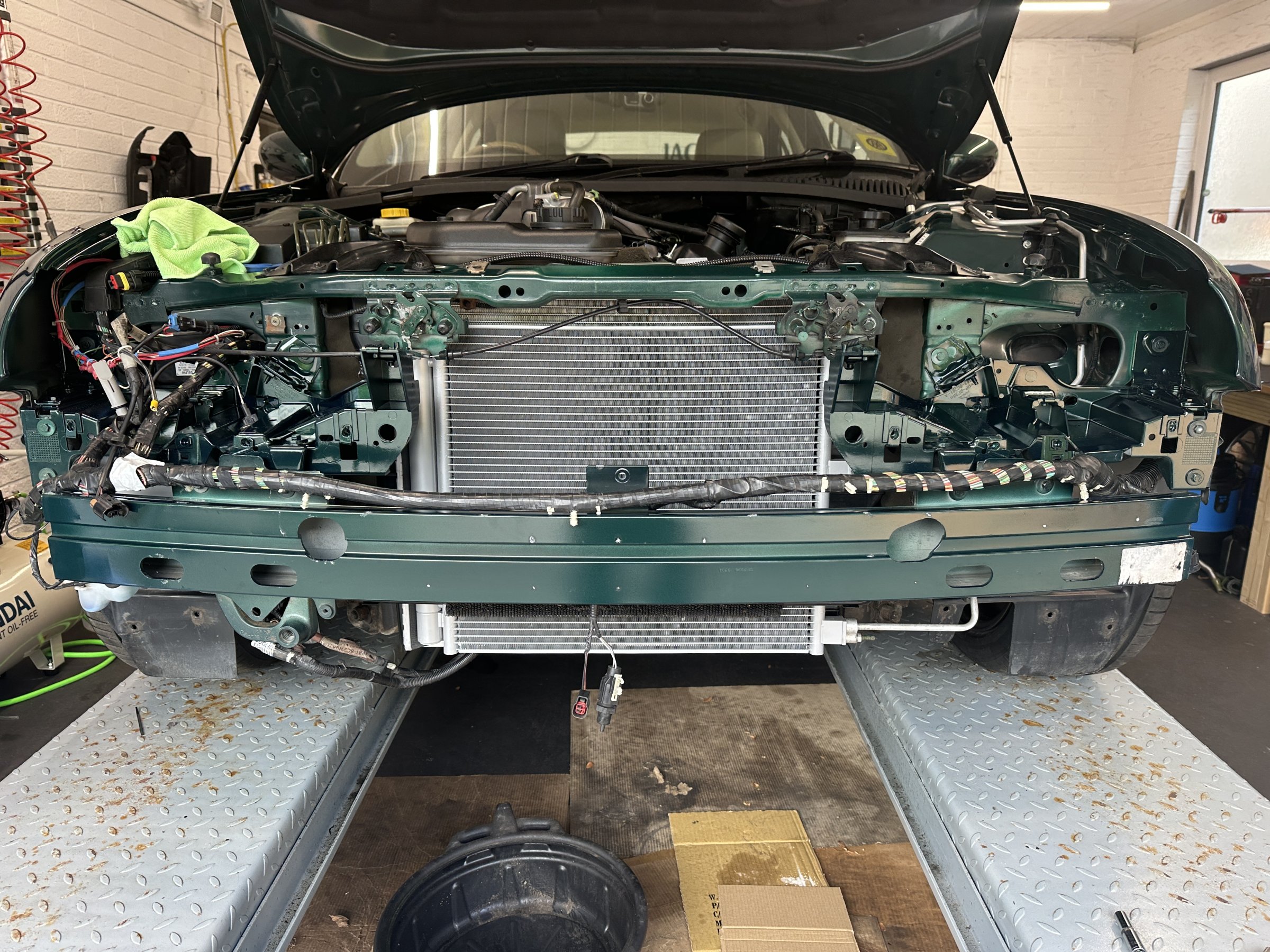

A/C System commissioned - refit of front end underway

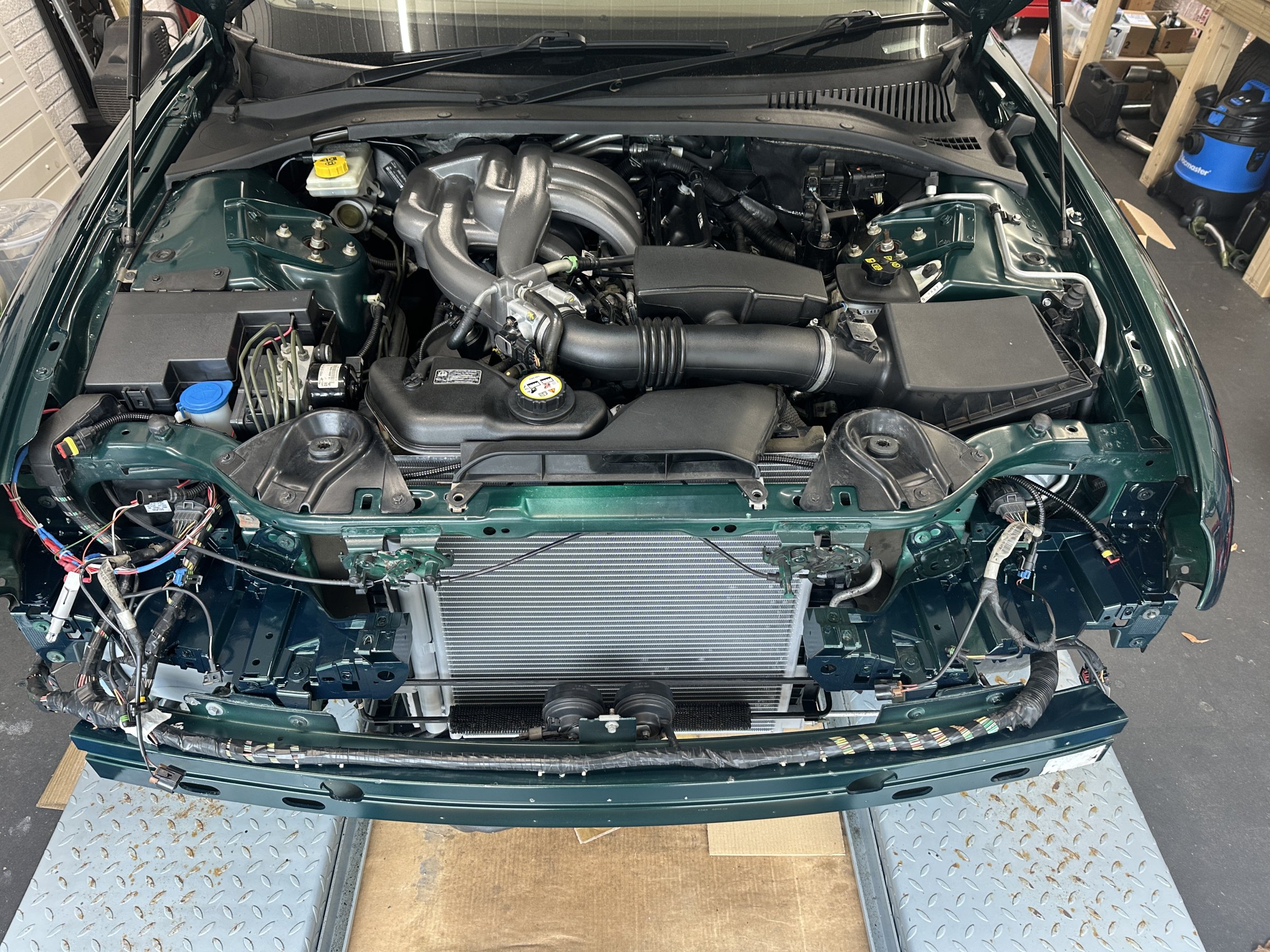

Airbox and MAF system re-fitted
From this Jaguar’s story
2005 Jaguar S-Type (X200) 3.0 SE/XS
See the full car
